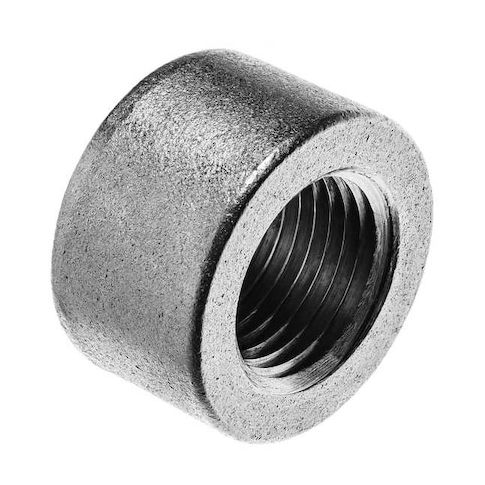

SS, Straight, 1"BSPTx1"ButtWeld MPN:ZUSA-PF-7530

• The ZORO SELECT - ZUSA-PF-7530 is a stainless steel Class 150 pipe fitting designed as a half coupling with a 1-inch nominal pipe size on both ends. It features a female BSPT threaded connection on Side A and a butt weld connection on Side B. Constructed of 316 stainless steel, this pipe fitting is rated for operation within the specified pressure-temperature ranges based on industry standards. The fitting is rated for maximum operating pressure of 150 psi according to manufacturer specifications. It is manufactured in accordance with ISO 7-1 threading standards.

  Key Features:


  • - Material: 316 stainless steel for corrosion resistance and durability.
  • - Pressure Class: Class 150, rated for maximum operating pressure of 150 psi.
  • - Application Range: designed for use with air, natural gas, oil, potable water, and steam within specified parameters.
  • - Connections: Side A is female BSPT threaded (11 TPI)
  • Side B is butt weld type.
  • - Nominal Pipe Size: 1 inch on both fitting ends.
  • - Overall Length: 21 mm, suitable for space-restricted installations as a half coupling.
  • - Standards: manufactured in accordance with ISO 7-1 threading standards.
