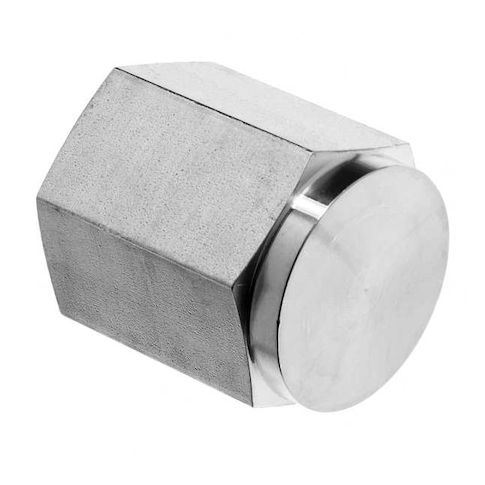

Cap, Stainless Steel, Threaded 1/4 in MPN:ZUSA-PF-7907
Free Shipping
In Stock
This stainless steel instrumentation cap is designed for closing and sealing pipe ends in various applications. Made from grade 304 stainless steel, it offers corrosion resistance and durability. Suitable for line termination and extensions, it connects using a female NPT thread, ensuring a secure fit in compatible piping systems. The cap is ideal for use in high-pressure environments, with a maximum steam pressure of 5,940 psi and a maximum operating pressure of 6,200 psi. It meets industry standards for safety and quality, making it a reliable choice for a range of industries, including oil and gas, chemical processing, and power generation.
Top product features:
- Material: 304 Stainless Steel for corrosion resistance and durability
- Fitting Connection Type: Female NPT thread for secure pipe connection
- Max. Steam Pressure: 5,940 psi
Top product applications:
- Line termination
- Extensions
- Pressure testing
The ZORO SELECT ZUSA-PF-7907 is a stainless steel instrumentation cap used to close and seal pipe ends. It is made from grade 304 stainless steel and has a 0.59 in hex drive for tool engagement. Suitable for line termination and extensions
- pressure testing not specified, it connects using a female NPT thread, ensuring a secure fit in compatible piping systems. Material: 304 stainless steel
- Max. Steam Pressure: 5,940 psi
- Maximum Operating Pressure: 6,200 psi.
Key Features:
- - Material: 304 Stainless Steel for corrosion resistance and durability
- - Fitting Connection Type: Female NPT thread for secure pipe connection
- - Includes Pre-Applied Thread Sealant: No
- - Includes Seal: No
- - Max. Steam Pressure: 5,940 psi
- - Maximum Operating Pressure: 6,200 psi
- - Nominal Pipe Size: 1/4 in
- - Outside Diameter: 13/16 in
- - Overall Length: 7/8 in
- - Plug Drive Style: has a 0.59 in hex drive for tool engagement
- - Standard Compliance: ASME B1.20.1, ANSI/ASME B31.1, ANSI/ASME B31.3
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.09
