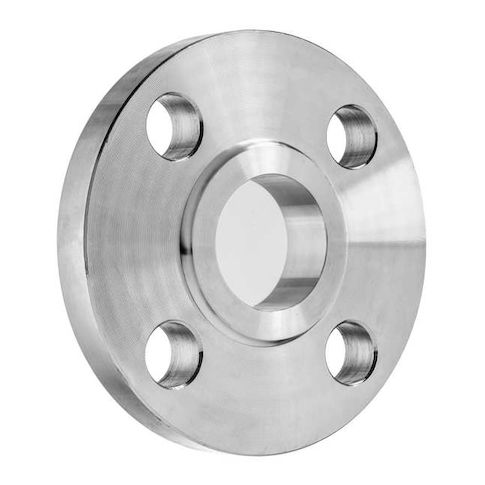

Pipe Flange, Slip-On, 316 Stainless Steel, 1.5 in Nominal Pipe Size, Class 1500, Raised Face MPN:BULK-PF-788
Free Shipping
In Stock
The ZORO SELECT - BULK-PF-788 stainless steel pipe flange is designed for use in piping systems handling air, natural gas, oil, and potable water. Its raised face and slip-on connection type facilitate easy installation and secure attachment, while the 316 stainless steel material provides corrosion resistance and durability in high-pressure environments. Suitable for applications requiring a stable connection point, this flange is ideal for use in various industries, including oil and gas, water treatment, and power generation, where reliable and long-lasting connections are essential.
Top product features:
- Raised Face connection surface for effective sealing with gaskets
- Material grade 316 Stainless Steel providing corrosion resistance
- Four bolt holes for securing the flange in place
Top product applications:
- Natural Gas Piping Systems
- Oil and Gas Industry Piping Systems
- Potable Water Distribution Systems
The ZORO SELECT - BULK-PF-788 is a stainless steel pipe flange designed with a raised face and 7-inch outside diameter as specified. It features a rated for use within specified pressure ranges according to industry standards and is intended for use in piping systems compatible with air, natural gas, oil, and potable water materials. With a nominal pipe size of 1 1/2 inches and a bolt hole diameter of 1 inch, it provides a stable connection point for piping and equipment. Its flanged x slip-on connection type facilitates assembly and disassembly, requiring proper gasket installation and assembly as per standard procedures to ensure a pressure-tight seal when used with gaskets and bolts. Manufactured from 316 stainless steel, conforming to material specifications, it offers corrosion resistance consistent with its material properties and durability, suitable for high-pressure environments. The flange has four bolt holes, enhancing secure attachment and flange stability.
Key Features:
- - Flanged x Slip-On connection type for ease of installation and secure attachment
- - Raised Face connection surface for effective sealing with gaskets
- - Flange outside diameter of 7 in for standardized mounting and compatibility
- - Material grade 316 Stainless Steel providing corrosion resistance
- - Nominal Pipe Size of 1 1/2 in for system compatibility
- - Class 1500 pressure rating, which indicates compliance with ASME B16.5 standards
- - Four bolt holes for securing the flange in place
- - Bolt hole diameter of 1 in for proper bolt sizing and strength
- - Standards include ASME B16.5, ASTM A182, MSS SP-25, MSS SP-6, ensuring compliance with industry specifications
- - Certified as compliant with low lead content requirements for potable water applications
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.89
- Package Width: 2.36
- Package Height: 3.89
- Package Weight: 1.72
