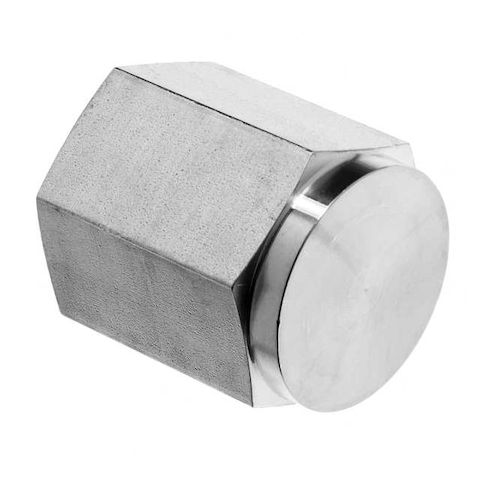

Instrumentation Cap, Hex Head, 304 Stainless Steel, 3/8 in NPT Female Thread MPN:ZUSA-PF-7908
Free Shipping
In Stock
The GoVets Select Instrumentation Cap is a reliable solution for various industrial applications. Constructed from Grade 304 stainless steel, this cap provides a durable and corrosion-resistant seal for pipe ends. With a female NPT connection, it easily connects to female NPT threads, making it ideal for line termination, pressure testing, and system extensions. Its hex head design allows for easy installation and removal with standard tools. Suitable for use in high-pressure applications up to 4,900 psi, this cap meets standards ASME B1.20.1, ANSI/ASME B31.1, and ANSI/ASME B31.3, making it a trusted choice for industries requiring precision and reliability.
Top product features:
- 304 stainless steel construction
- Female NPT connection for connection via female NPT threads
- Hex head design for easy install and removal with standard tools
Top product applications:
- Line termination
- Pressure testing
- System extensions
The ZORO SELECT ZUSA-PF-7908 is a stainless steel instrument cap. The cap closes the pipe end. Constructed from Grade 304 stainless steel, it features a female NPT connection for connection via female NPT threads. Intended uses: line termination, pressure testing, and system extensions.
Key Features:
- Connection Type: Female NPT for connection via female NPT threads
- Material Grade: 304 stainless steel
- Outside Diameter: 1 in
- Overall Length: 1 in
- Max. Steam Pressure: 4,770 psi
- Maximum Operating Pressure: 4,900 psi
- Includes Seal: No
- Includes Pre-Applied Thread Sealant: No
- Fitting Shape: Hex Head Cap
- install and remove with standard tools
- Standards: ASME B1.20.1
- ANSI/ASME B31.1
- ANSI/ASME B31.3
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.03
- Package Width: 1.01
- Package Height: 0.88
- Package Weight: 0.26
