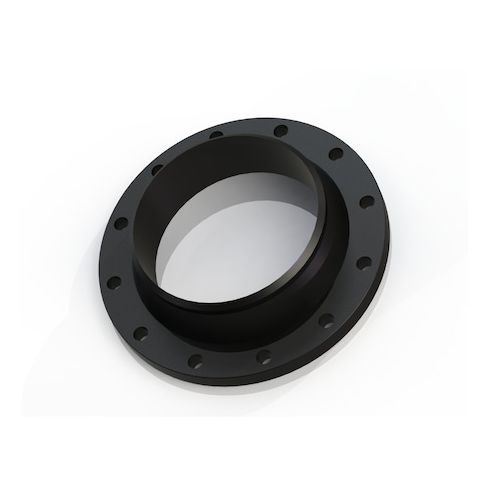

Weld Neck Flange, 10 in Nominal, 16 in OD, Carbon Steel, Class 150, Raised Face MPN:FL1RWNX10

• The ZORO SELECT FL1RWNX10 is a weld neck flange made of stainless steel, designed for high-pressure and high-temperature applications, including gas, non-potable water, and oil systems. Its long, tapered hub allows for butt-welding to pipes, providing a smooth flow path and a strong, radiused weld joint. Suitable for cyclic and corrosive service

• maintains stress distribution and alignment within specified parameters.

  Key Features:

  • - Application: Gas, Non-Potable Water, Oil, indicating versatility across different fluid systems.
  • - Class: 150, conforming to industry standards for pressure rating.
  • - Connection Surface: Raised Face, affecting the sealing and mating interface.
  • - Fitting Connection Type: Weld-Neck, specifying the end connection style for secure pipe attachment.
  • - Flange Outside Diameter: 16 inches.
  • - Item: Weld Neck Flange, constructed for high-stress and corrosive environments with durable stainless steel construction.
  • - Maximum Operating Pressure: 150 psi, rated for operation within specified pressure ranges.
  • - Nominal Pipe Size: 10 inches, specifying the pipe size the flange is designed to connect.
  • - Number of Bolt Holes: 12, providing the number of fastener points for securing the flange.
  • - Pipe Fitting Material: Stainless Steel, ensuring corrosion resistance and durability.
  • - Specific Fitting Shape: Not specified as a shape but classified under weld neck flange design.
  • - Standards: Not specified, which implies no additional standard compliance data provided.
