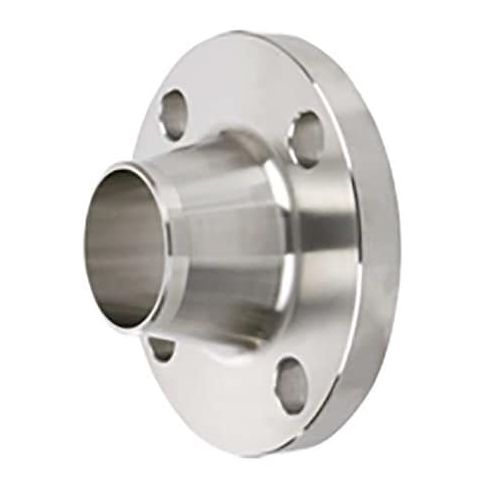

Flange, Stainless Steel, 3 3/4 in MPN:4381006400
This stainless steel pipe flange is designed for joining pipes, valves, pumps, or equipment, providing a boltable surface for secure connections. Made from 316/316L stainless steel, it offers corrosion resistance and is suitable for use in pipe systems requiring a 1/2 inch nominal pipe size. The flange conforms to industry standards, including ASME A182, ASME B1.20.1, and ASME B16.5, and is rated as Class 150 for pressure. Ideal for use in chemical processing, oil and gas, and other high-pressure applications, this flange ensures reliable connections and helps maintain system integrity.
Top product features:
- Material: 316/316L stainless steel, offering corrosion resistance.
- Raised Face connection surface compatible with gaskets and bolts.
- Schedule 80 Weld Neck Flange design for welded pipe connections.
Top product applications:
- Pipe systems requiring a 1/2 inch nominal pipe size
- Valve connections in industrial piping systems
- Equipment mounting in chemical processing plants
The ZORO SELECT - 4381006400 is a stainless steel pipe flange designed to provide a boltable surface for joining pipes, valves, pumps, or equipment. Made from 316/316L stainless steel, featuring a raised face connection surface compatible with gaskets and bolts, this pipe flange is classified as a Schedule 80 Weld Neck Flange and rated as Class 150 for pressure, conforming to industry standards including ASME A182, ASME B1.20.1, and ASME B16.5. With a nominal pipe size of 1/2 inch, it is suitable for pipe systems requiring this size standard.
Key Features:
- - Material: 316/316L stainless steel, offering corrosion resistance.
- - Pressure Class: Class 150, specified for use within the designated pressure range.
- - Connection Surface: Raised Face, standard for bolted flange connections.
- - Flange Shape: Schedule 80 Weld Neck Flange, designed for welded pipe connections in accordance with applicable standards.
- - Nominal Pipe Size: 1/2 inch, specifying pipe compatibility.
- - Number of Bolt Holes: 4, for secure attachment to mating flanges or equipment.
- - Bolt Circle Diameter: 2 3/8 inches, the diameter across the bolt holes' centers.
- - Bolt Hole Diameter: 5/8 inch, the size of holes through which bolts pass.
- - Flange Outside Diameter: 3 3/4 inches, measured edge to edge.
- - Flange Thickness: 1/2 inch, measured perpendicular to the flange face.
- - Conforms to ASME A182, ASME B1.20.1, and ASME B16.5 standards.
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.75
- Package Width: 3.75
- Package Height: 2.06
- Package Weight: 1.76
