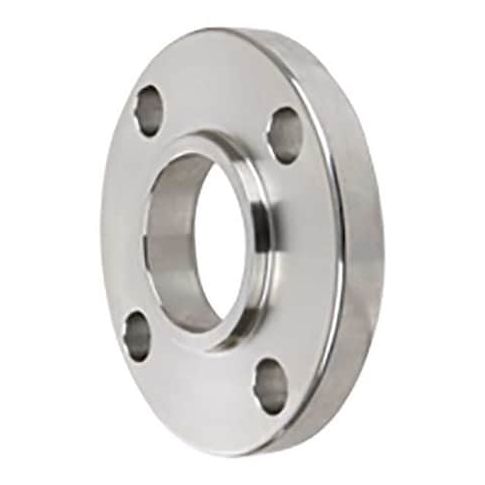

Pipe Flange, 2 in, 316/316L Stainless Steel, Slip-On, Raised Face, Class 150 MPN:4381002250

• The ZORO SELECT - 4381002250 is a 2-inch slip-on pipe flange constructed from 316/316L stainless steel. Designed to be slipped over a pipe end and secured by fillet welds, this flange provides a boltable surface for joining pipes, valves, pumps, or equipment. It features a raised face connection surface for gasketed joints using bolts. The flange is rated Class 150 per ASME B16.5. It conforms to ASME A182, ASME B1.20.1, and ASME B16.5 standards.

  Key Features:

  • - Nominal Pipe Size: 2 in
  • - Material Grade: 316/316L stainless steel
  • - Specific Fitting Shape: Slip-On Flange
  • - Class Rating: Class 150
  • - Connection Surface: Raised Face
  • - Number of Bolt Holes: 4
  • - Bolt Hole Diameter: 3/4 in
  • - Bolt Circle Diameter: 4 3/4 in
  • - Flange Outside Diameter: 6 in
  • - Flange Thickness: 3/4 in
  • - Standards: ASME A182
  • ASME B1.20.1
  • ASME B16.5
