3/16" Compression Low Lead Brass Sleeve MPN:700060-03

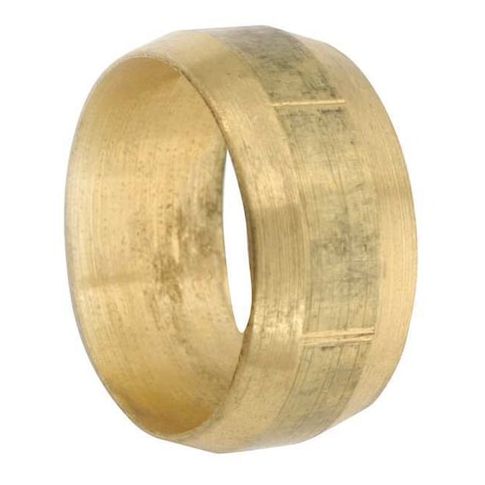

3/16" Compression Low Lead Brass Sleeve
The 3/16in Compression Low Lead Brass Sleeve from GoVets Select is a versatile and reliable fitting solution for various applications. Suitable for use with aluminum, copper, and thermoplastic tubes, this compression fitting sleeve provides a secure and leak-free connection. With a maximum operating pressure of 400 psi and a temperature range of 40-250°F, it can handle demanding systems. NSF/ANSI 61 Annex G certified, this sleeve meets strict standards for drinking water applications. Ideal for plumbing, HVAC, and industrial systems, it ensures a long-lasting and trouble-free performance. Its compact size and low lead content make it an excellent choice for a wide range of projects.
Top product features:
- 3/16in Compression Low Lead Brass Sleeve is made from a low lead brass material that meets NSF/ANSI 61 Annex G standards
- The sleeve is designed for use in compression fittings and is compatible with a range of tube materials, including aluminum, copper, and thermoplastic
- The product can operate at a maximum pressure of 400 psi and a maximum temperature of 250 Degrees F
Top product applications:
- Medical Equipment Tubing
- Filtration Systems for Drinking Water
- Steam Traps in HVAC Systems
Compression Fitting Sleeve, Fitting Material Brass, Material Grade CA2745, Maximum Operating Pressure 400 psi, Maximum Operating Temperature 250 Degrees F, Overall Length 7/32 in, Specific Fitting Shape Sleeve, System of Measurement Imperial, Compatible Tube Outer Diameter 3/16 in, Standards NSF/ANSI 61 Annex G, Compatible Fitting Connection Type Compression, Compatible Tube Material Aluminum, Copper, Thermoplastic, Minimum Operating Temperature 40 Degrees F
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 10
- Unit of Measure: EA
- Package Length: 2.00
- Package Width: 1.50
- Package Height: 0.40
- Package Weight: 0.15
Product info last updated on February 3, 2026 11:21pm UTC
Category: Pipes, Valves and Fittings
