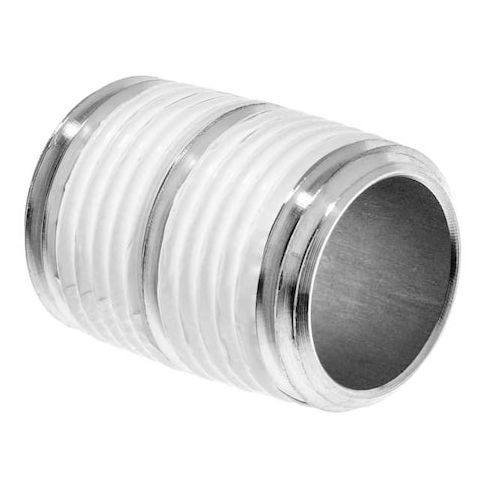

Nipple, Schedule 40, 3/8 in Nominal Pipe Size, 304 Stainless Steel, 1 in Overall Length MPN:ZUSA-PF-1343
Free Shipping
In Stock
Elevate your piping systems with the GoVets Select ZUSA-PF-1343 stainless steel nipple. This 304 stainless steel connector is designed to join female-threaded fittings, valves, or pipes, providing a secure and corrosion-resistant seal. With fully threaded male NPT connections and a Schedule 40 piping system compatibility, this nipple is ideal for a variety of applications, including chemical processing, food and beverage, and pharmaceutical industries. Its resistance to corrosion and high operating pressures make it a reliable choice for demanding environments, ensuring smooth and efficient fluid transfer. Perfect for new installations or replacement parts.
Top product features:
- 304 stainless steel construction provides corrosion resistance.
- Fully threaded male NPT connections on both ends enable secure and leak-resistant connections.
- Welded pipe design with electric resistance weld seam ensures structural integrity and durability.
Top product applications:
- Plumbing and piping systems
- Industrial equipment and machinery
- Steam power and HVAC systems
The ZORO SELECT - ZUSA-PF-1343 is a stainless steel nipple designed to connect two female-threaded fittings, valves, or pipes. Constructed from 304 stainless steel with a welded pipe design and electric resistance weld seam, it provides corrosion resistance inherent to 304 stainless steel and is compatible with standard piping systems for the listed media. This nipple features fully threaded male NPT connections on both ends and is compatible with Schedule 40 piping systems. It has a nominal pipe size of 3/8 inch, an inside diameter of 23/64 inch, and measures 1 inch in overall length. Key Features:
- - Made from 304 stainless steel with welded construction and electric resistance weld.
- - Fully threaded male NPT connections on both ends with close thread type.
- - Compatible with Schedule 40 pipe standards.
- - Rated for a maximum operating pressure of 150 psi at 72°F and maximum steam pressure of 150 psi at 360°F.
- - Wall thickness of 0.088 inches with an outside diameter of 35/64 inch.
- - 304 stainless steel construction
- corrosion resistance inherent to the material.
- - Meets the ANSI/ASME B1.20.1, ASTM A312, and ASTM A733 standards.
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.40
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.03
