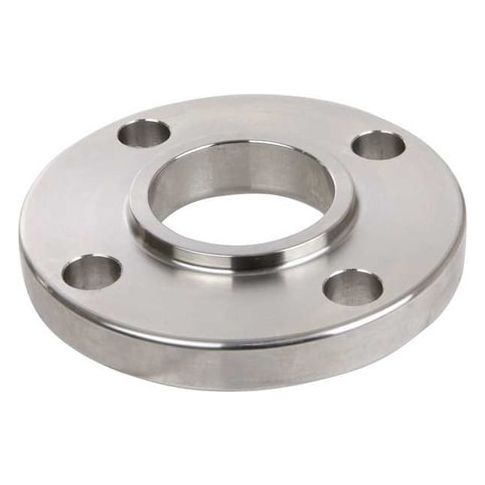

5 in Stainless Steel Slip-On Flange, 304/304L, Class 150, Raised Face MPN:4381000490
The ZORO SELECT - 4381000490 stainless steel slip-on pipe flange is designed for bolted pipe connections between compatible components, ideal for applications in the chemical, oil, and gas industries. Made from 304/304L stainless steel, this flange offers excellent corrosion resistance and durability. With a raised face connection surface, it provides a secure and leak-tight seal. The flange is compatible with 5-inch nominal pipe size and conforms to ASME A182 and ASME B16.5 standards, making it a reliable choice for high-pressure applications. Its compact design and easy installation make it a great solution for a variety of industrial and commercial use cases.
Top product features:
- Material: 304/304L Stainless Steel
- Type: Slip-On Flange
- Connection Surface: Raised Face
Top product applications:
- High-pressure water treatment systems
- Chemical processing plants
- Oil refineries
The ZORO SELECT - 4381000490 is a stainless steel slip-on pipe flange designed for bolted pipe connections between compatible components. Made from 304/304L stainless steel, this flange has a raised face connection surface intended for gasketed joint assembly. It is compatible with a nominal pipe size of 5 inches and conforms to ASME A182 and ASME B16.5 standards for dimensions and pressure ratings. The flange is rated for Class 150 nominal pressure ratings within specified parameters.
Key Features:
- - Material: 304/304L Stainless Steel
- - Type: Slip-On Flange
- - Nominal Pipe Size: 5 in
- - Pressure Class: 150
- - Number of Bolt Holes: 8
- - Bolt Circle Diameter: 8 1/2 in
- - Bolt Hole Diameter: 7/8 in
- - Flange Outside Diameter: 10 in
- - Flange Thickness: 15/16 in
- - Connection Surface: Raised Face
- - Standards: ASME A182
- ASME B16.5
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 10.00
- Package Height: 1.44
- Package Weight: 13.89
