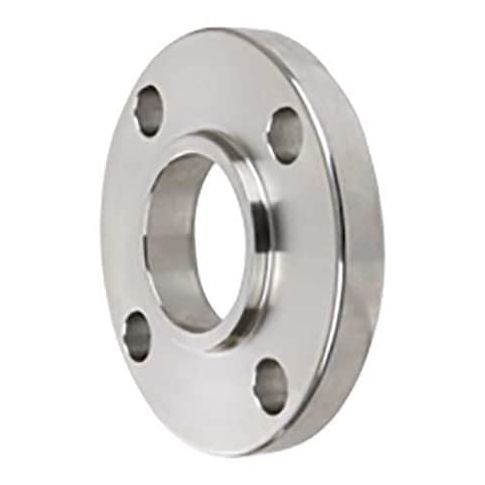

Pipe Flange, Slip-On, 316/316L Stainless Steel, 1 1/4 in, Class 150, Raised Face MPN:4381002230

The ZORO SELECT - 4381002230 is a stainless steel pipe flange designed as a slip-on flange that fits over a pipe and is secured by welding. It provides a boltable surface for connecting pipes, valves, pumps, or equipment, and forms a bolted joint surface for gasketed seals using gaskets and bolts. Constructed from 316/316L stainless steel, corrosion resistance is inherent to this material grade and conforms to standardized dimensions and is designed for compatibility with components conforming to ASME B16.5. This pipe flange is rated Class 150, indicating its pressure capacity as per industry standards. Key Features:

• - Nominal Pipe Size: 1 1/4 in
• - Slip-On flange type
• - Bolt Circle Diameter: 3 1/2 in, with 4 bolt holes
• - Bolt Hole Diameter: 5/8 in
• - Raised Face connection surface for sealing
• - Flange Outside Diameter: 4 9/16 in
• - Flange Thickness: 9/16 in
• - Material Grade: 316/316L Stainless Steel
• - Compliance with ASME A182, ASME B1.20.1, ASME B16.5 standards
