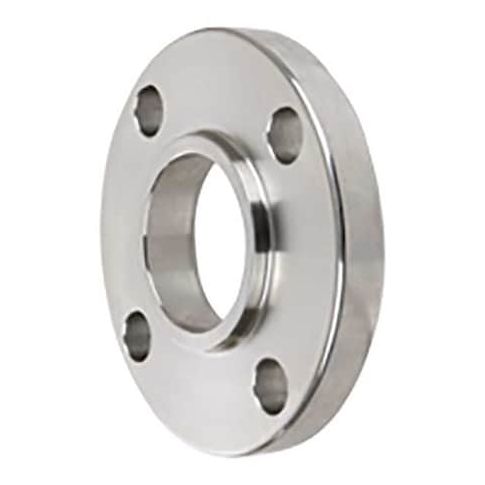

Pipe Flange, Slip-On, 316/316L Stainless Steel, 1 1/2 in Pipe Size, Class 150, Raised Face MPN:4381002240
This stainless steel slip-on pipe flange is designed for welding onto the end of a pipe, providing a boltable surface for joining pipes, valves, pumps, or other equipment in high-pressure applications. Made from 316/316L stainless steel, it conforms to ASME standards for durability and safety. Suitable for use in chemical processing, oil and gas, and pharmaceutical industries, this flange offers a raised face connection surface and a Class 150 pressure rating for nominal pipe size 1 1/2 inches. Its compact design and corrosion-resistant material make it an ideal choice for a variety of piping systems and equipment installations.
Top product features:
- This flange is made from 316/316L stainless steel, providing corrosion resistance and durability.
- It features a raised face connection surface, allowing for secure and reliable joining of pipes, valves, and other equipment.
- It is rated Class 150 for nominal pipe size 1 1/2 inches, indicating its ability to withstand high pressures and ensure safe operation.
Top product applications:
- Pipe connections to valves, pumps, or other equipment
- Joining pipes together
- Connecting to other equipment such as heat exchangers or tanks
The ZORO SELECT - 4381002240 is a stainless steel slip-on pipe flange designed to be welded onto the end of a pipe, providing a boltable surface for joining pipes, valves, pumps, or other equipment.
This flange is made from 316/316L stainless steel and conforms to ASME A182
- ASME B1.20.1
- ASME B16.5 standards.
It features a raised face connection surface and is rated Class 150 for nominal pipe size 1 1/2 inches.
Key Features:
- - Nominal Pipe Size: 1 1/2 in
- - Material Grade: 316/316L Stainless Steel
- - Flange Type: Slip-On Flange
- - Connection Surface: Raised Face
- - Pressure Rating: Class 150
- - Number of Bolt Holes: 4
- - Bolt Circle Diameter: 3 7/8 in
- - Bolt Hole Diameter: 5/8 in
- - Flange Outside Diameter: 5 in
- - Flange Thickness: 11/16 in
- - Standards: ASME A182
- ASME B1.20.1
- ASME B16.5
Additional Information
- Country of Origin: KR
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 0.88
- Package Weight: 3.09
