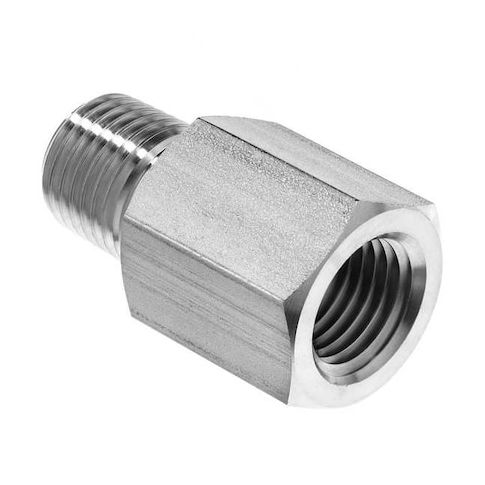

Straight Adapter, Steel, 1/2 in NPT x 1/2 in BSPT, Galvanized, 1 15/16 in Length MPN:ZUSA-PF-7989

• The ZORO SELECT - ZUSA-PF-7989 is a steel (zinc galvanized) instrumentation pipe fitting. Straight adapter for instrumentation tubing

• rated for operation up to 4,900 psi. It is suitable for conveying air, hydraulic fluid, natural gas, non-potable water, oil, and steam. The zinc galvanizing coating provides corrosion resistance. This fitting features a combination of NPT female connection on Side A and BSPT male connection on Side B, both sized at 1/2 inch nominal pipe size with 14 threads per inch. Key Features:

  • - Material: Carbon steel with galvanized zinc coating
  • - Specific fitting shape: Straight adapter
  • - Connection type and gender: Side A is female NPT, Side B is male BSPT
  • - Pipe size: 1/2 inch nominal pipe size on both ends
  • - Thread size: 14 threads per inch on each end
  • - Hex size (across flats): 1 1/16 inches for wrenching
  • - Maximum operating pressure: 4,900 psi
  • - Applications include: Air, hydraulic fluid, natural gas, non-potable water, oil, and steam
  • - Finish: Galvanized for corrosion resistance
  • - Does not include pre-applied thread sealant or sealing components
  • - Meets ANSI B31.1 standard
  • - Overall length: 1 15/16 inches
