304 Stainless Steel Hex Bushing, Male NPT x Female NPT, 3/8 in x 1/4 in, 6, 200 psi MPN:ZUSA-PF-7870
Free Shipping
In Stock

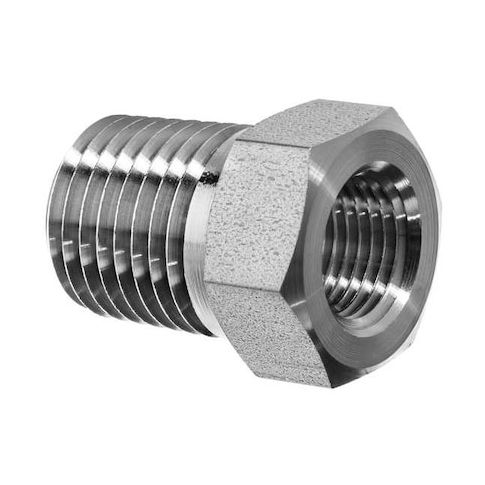

This 304 stainless steel hex bushing is a reliable connection solution for instrumentation, sampling, and control systems. Its male NPT x female NPT design allows for secure connections in a variety of applications, including general instrumentation piping. With a maximum operating pressure of 6,200 psi and a temperature range suitable for general instrumentation piping, this fitting is perfect for use in high-pressure systems. Its 304 stainless steel construction ensures durability and resistance to corrosion, making it an ideal choice for industries such as oil and gas, chemical processing, and pharmaceuticals.
Top product features:
- 304 stainless steel construction provides resistance to corrosion and durability in harsh environments.
- The hexagonal shape allows for wrench tightening, enabling secure and easy installation.
- The fitting provides pressure-rated, sealed joints rated for operation up to 6,200 psi, meeting ANSI B31.1 standards.
Top product applications:
- Instrumentation piping in chemical processing plants
- Sampling systems for quality control in food and beverage manufacturing
- Control systems for water treatment plants
The ZORO SELECT - ZUSA-PF-7870 is a stainless steel instrumentation pipe fitting in the shape of a hex bushing. It is designed to connect or reduce small-diameter tubing and piping used in instrumentation, sampling, and control systems, compatible with fluids within the product's rated pressure and temperature ranges for general instrumentation piping. Made from 304 stainless steel, this fitting provides pressure-rated, sealed joints rated for operation up to 6,200 psi, meeting ANSI B31.1 standards and complying with low-lead requirements for potable water systems. The fitting features a silver finish and a hexagonal shape for wrench tightening.
Key Features:
- - Material Grade: 304 stainless steel
- - Specific Fitting Shape: Hex bushing
- - Connection Side A: Male NPT thread, 3/8 in nominal pipe size, 18 threads per inch
- - Connection Side B: Female NPT thread, 1/4 in nominal pipe size, 18 threads per inch
- - Maximum Operating Pressure: 6,200 psi
- - Overall Length: 13/16 in
- - Hex Size: 3/4 in (wrenching surface across flats)
- - Color: Silver
- - Includes Pre-Applied Thread Sealant: No
- - Includes Seal: No
- - Standards: ANSI B31.1
- - Low Lead Compliance Level: Compliant
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.30
- Package Width: 0.80
- Package Height: 0.80
- Package Weight: 0.08
