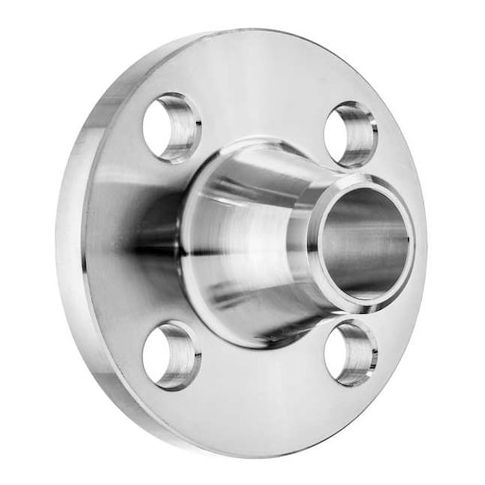

Weld Neck Flange, 316 Stainless Steel, 1 in Nominal Pipe Size, Class 1500, Raised Face MPN:BULK-PF-780
Free Shipping
In Stock
Create reliable and durable connections with the ZORO SELECT - BULK-PF-780, a high-quality weld neck flange designed for use in a variety of applications. Constructed from 316-grade stainless steel, this flange offers exceptional corrosion resistance and is rated for use with air, natural gas, oil, and potable water. Measuring 5 7/8 inches in outside diameter and featuring a raised face connection surface, this flange is ideal for use in systems where a secure and leak-free connection is critical. With a pressure rating of Class 1500 and compliance with industry standards, this flange is a reliable choice for a range of industrial and commercial applications.
Top product features:
- 316 stainless steel construction provides corrosion-resistant material.
- Raised face connection surface allows for boltable connections.
- Weld neck design enables secure and leak-resistant connections.
Top product applications:
- air
- natural gas
- potable water
The ZORO SELECT - BULK-PF-780 is a stainless steel pipe flange designed as a weld neck flange for creating boltable connections. It features a raised face connection surface and is constructed from 316-grade stainless steel. This pipe flange is intended for use with 1-inch nominal pipe size and is rated at Class 1500 within specified operating parameters. It is configured for use with air, natural gas, oil, and potable water within the specified operating conditions. The flange offers corrosion-resistant material (316 stainless steel) and is manufactured in accordance with industry standards for potable water systems. It meets several industry standards including ASME B16.5, ASTM A182, MSS SP-25, and MSS SP-6.
Key Features:
- - Material Grade: 316 stainless steel.
- - Nominal Pipe Size: 1 in.
- - Pressure Rating: Class 1500.
- - Number of Bolt Holes: 4.
- - Bolt Hole Diameter: 7/8 in.
- - Flange Outside Diameter: 5 7/8 in.
- - Connection Surface: Raised Face.
- - Fitting Connection Type: Flanged x Weld Neck.
- - For Pipe Schedule: XXH.
- - Applications include air, natural gas, oil, and potable water.
- - Standards: ASME B16.5
- ASTM A182
- MSS SP-25
- MSS SP-6.
Additional Information
- Country of Origin: IN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.83
- Package Width: 2.30
- Package Height: 3.83
- Package Weight: 1.66
