Two-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Short Barrel, Copper, Brown MPN:24C449
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4686342

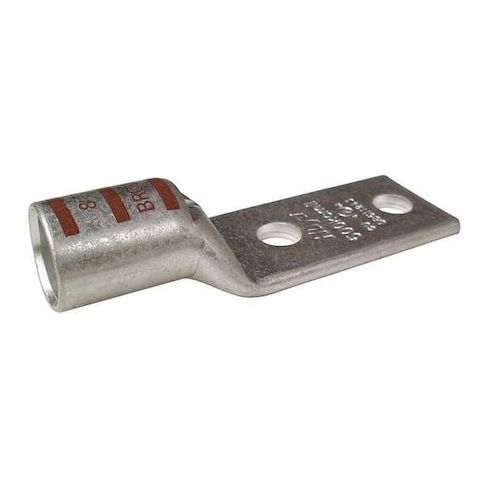

Two-Hole Compression Lug, 500 kcmil Max, 1/2 in Stud, Short Barrel, Copper, Brown
Upgrade your electrical connections with the Two-Hole Compression Lug from GoVets Select. Designed for use with stranded copper wire up to 500 kcmil, this lug features a 1/2 in stud and a seamless copper barrel for reliable performance. With a maximum operating temperature of 257°F and a voltage rating of 35 kV, it's perfect for a variety of applications, including industrial and commercial electrical systems. The lug's brown color code and die code 87 ensure easy identification and compatibility. Its compact design and standard barrel size make it easy to integrate into existing systems, reducing downtime and increasing efficiency.
Top product features:
- Two-Hole Compression Lug provides a secure crimp termination for stranded copper wire up to 500 kcmil.
- It is designed for use with 1/2 in studs.
- The Lug has a straight tongue angle for easy installation.
Top product applications:
- Power Distribution Systems
- Busway Connections
- Electrical Panel Connections
Compression Lug, Barrel Size Standard, Color Code Brown, Die Code 87, Tongue Angle Straight, Tongue Width 1.61 in, For Conductor Material Copper, For Stud Size 1/2 in, For Stranded Copper Wire Size - Minimum 500 kcmil, For Stranded Copper Wire Size - Maximum 500 kcmil, Inspection Hole Yes, Hole Center to Center 1.75 in, Material Copper, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 35 kV, Termination Style Crimp, Seam Style Seamless, Standards UL Listed, Number of Holes 2
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 1.50
- Package Height: 1.30
- Package Weight: 0.55
Product info last updated on February 9, 2026 10:47pm UTC
Category: Electrical Connectors
