3/4 in. 316 Stainless Steel 45° Lateral Socket Weld Fitting, Class 3000 MPN:1501300618

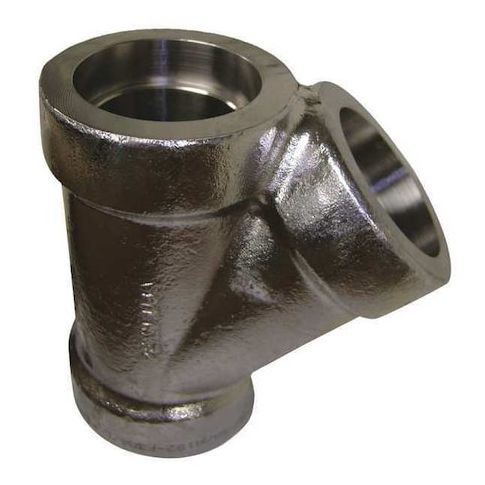

• This 45 Degree Lateral is a stainless steel pipe fitting with three connection ports, designed to connect a branch line to a main pipe at a 45° angle. Constructed from grade 316 stainless steel, it provides corrosion resistance and strength. Rated for operation within specified pressure and temperature ranges, it features socket weld connection types and has a nominal size of 3/4 inch on each port. Its overall length is 2 15/16 inches, making it suitable for systems requiring a gentle offset in piping runs.

  Key Features:

  • - Fitting Material: 316 stainless steel for durability and corrosion resistance.
  • - Application: Suitable for natural gas, non-potable water, and oil systems.
  • - Connection Types: Socket weld connections on all ports.
  • - Pressure Rating: Class 3000, with a maximum pressure of 3000 psi at 100°F.
  • - Ports: Three in total
  • side A and B both with female gender, side C with female gender.
  • - Nominal Pipe Size: 3/4 inch for all ports.
  • - Standards: Complies with LF2 ASME B16.11 and SA182 specifications.
  • - Temperature Range: -20°F to 100°F.
