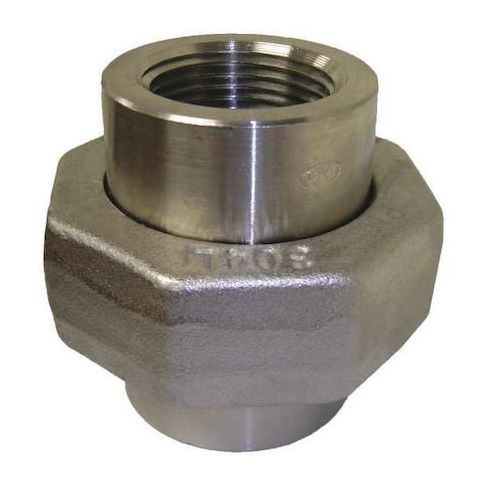

2 in NPT 304 Stainless Steel Union, Class 3000, Female-Female, 3-7/16 in Overall Length MPN:4000301712

• This stainless steel pipe union connects two pipe ends, allowing for quick assembly and disassembly without rotating the pipes. It is designed for use in industrial, sanitary, and high-temperature systems

• access or realignment should be performed according to applicable procedures. Made from corrosion-resistant 304 stainless steel, it offers a pressure-tight seal and can be used with threaded, socket-weld, or butt-weld configurations.

  Key Features:

  • - Material Grade: 304 stainless steel for corrosion resistance and durability.
  • - Pressure Rating: Max pressure of 3000 psi at 100°F, suitable for high-pressure applications.
  • - Connection Type: NPT threaded connections on both sides for compatibility with standard piping.
  • - Fitting Side A and B: Female gender with 2-inch nominal pipe size each, facilitating straightforward pipe connection.
  • - Overall Length: 3 7/16 inches, providing a compact fitting profile.
  • - Standards: MSS SP83, SA182, ensuring compliance with recognized industry specifications.
  • - Temperature Range: -20°F to 100°F, allowing operation within this temperature span.
  • - Class/Pressure Rating: Class 3000, indicating suitability for high-pressure systems.
  • - Hex Size: 4 inches, offering a suitable wrenching surface for installation and removal.
  • - Does not include pre-applied thread sealant or seals, requiring separate sealing components if needed.
