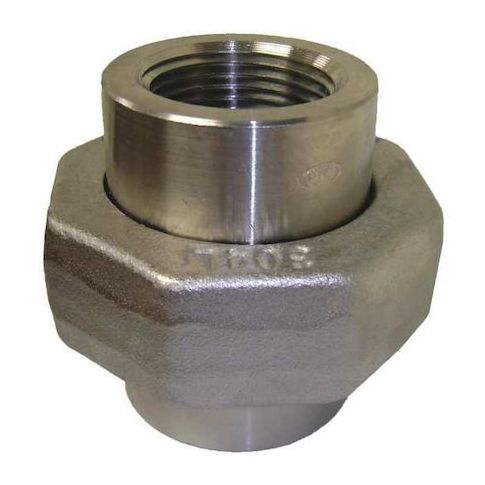

1 in NPT 316 Stainless Steel Union, Class 3000, Female-Female, 2-1/2 in Overall Length MPN:2000301718
Connect and disconnect pipe ends with ease using the ZORO SELECT 1 in NPT 316 Stainless Steel Union. Constructed from durable 316 stainless steel, this union features female NPT threaded connections on both ends, making it perfect for piping systems handling natural gas, non-potable water, and oil. With a maximum operating pressure of 3,000 psi at 100°F, this union is ideal for use in industrial settings where reliability and safety are paramount. Its compact 2-1/2 in overall length and hex size make it easy to handle and install, ensuring a secure connection every time.
Top product features:
- The union connects and disconnects two 1-inch pipe ends without rotating the pipes.
- It features female NPT threaded connections on both ends for secure and leak-free connections.
- The union is constructed from 316 stainless steel alloy for corrosion resistance.
Top product applications:
- Connecting two 1-inch pipe ends without rotating the pipes in piping systems handling natural gas, non-potable water, and oil.
- Disconnecting and reconnecting pipe ends in piping systems handling natural gas, non-potable water, and oil.
- Sealing and connecting pipe ends in piping systems handling natural gas, non-potable water, and oil.
The ZORO SELECT - 2000301718 is a stainless steel pipe union designed to connect and disconnect two 1-inch pipe ends without rotating the pipes. Constructed from 316 stainless steel, it features a sealing capability rated to maintain up to 3,000 psi at 100°F for piping systems handling natural gas, non-potable water, and oil. The union features female NPT threaded connections on both ends. It is rated for a maximum operating pressure of 3,000 psi at 100°F. Temperature range: -20°F to 100°F. This union complies with MSS SP83 and SA182 standards and carries a Class 3000 pressure rating.
Key Features:
- - Pipe Size: 1 inch nominal diameter on both ends
- - Connection Type: Female NPT threaded ends (Side A and Side B)
- - Material: 316 stainless steel alloy for corrosion resistance
- - Maximum Operating Pressure: 3,000 psi @ 100°F
- - Temperature Range: -20°F to 100°F
- - Overall Length: 2 1/2 inches
- - Hex Size: 2 1/2 inches for wrench application
- - Pressure Class: Class 3000
- - Compatible with piping systems handling natural gas, non-potable water, and oil
- - Includes no pre-applied thread sealant or seals
- - Standards: MSS SP83, SA182
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.70
- Package Width: 2.70
- Package Height: 2.50
- Package Weight: 7.50
