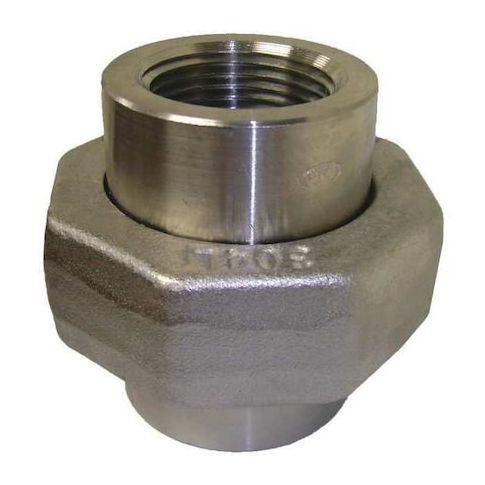

1-1/2 in NPT 316 Stainless Steel Union, Female-Female, Class 3000 MPN:3000301718
Join 1-1/2 inch pipe ends with ease using the ZORO SELECT 3000301718 stainless steel pipe union. Constructed from 316 stainless steel, this three-piece mechanical fitting provides corrosion resistance and is suitable for industrial piping systems conveying natural gas, non-potable water, and oil. With a Class 3000 rating, it can operate at pressures up to 3000 psi at 100°F. This union facilitates maintenance or replacement without rotating the pipes and is ideal for applications where easy disconnection is necessary, such as in power plants, chemical processing, and oil refineries. Its compact design and corrosion-resistant material make it a reliable choice.
Top product features:
- This pipe union allows connection or disconnection without rotating the pipes, facilitating maintenance or replacement.
- Constructed from 316 stainless steel, this pipe union offers corrosion resistance.
- The union is rated for operation at pressures up to 3000 psi at 100°F.
Top product applications:
- Joining two 1-1/2 inch pipe ends with female NPT threaded connections on both sides in industrial piping systems conveying natural gas.
- Connecting pipes for maintenance or replacement in industrial applications without rotating the pipes.
- Replacing or repairing existing pipe connections in oil and gas pipelines.
The ZORO SELECT - 3000301718 is a stainless steel pipe union designed to join two 1-1/2 inch pipe ends with female NPT threaded connections on both sides. This three-piece mechanical fitting (body, nut, and mating seat or gasket) allows connection or disconnection without rotating the pipes, facilitating maintenance or replacement.
Constructed from 316 stainless steel, this pipe union is compatible with industrial piping systems conveying natural gas, non-potable water, and oil, and offers corrosion resistance.
The union is rated for operation at pressures up to 3000 psi at 100°F and within a temperature range of -20°F to 100°F.
Key Features:
- - Pipe Size: 1-1/2 inch nominal pipe size on both sides.
- - Connection Type: Female National Pipe Thread (NPT) on Side A and Side B.
- - Material Grade: 316 stainless steel for corrosion resistance.
- - Pressure Class: Class 3000, rated for up to 3000 psi at 100°F.
- - Temperature Range: Operates from -20°F to 100°F.
- - Hex Size: 3 3/8 inches across flats, providing a wrenching surface.
- - Overall Length: 3 inches.
- - Standards: omit from description
- - Note: this product does not include pre-applied thread sealant or sealing components.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.70
- Package Width: 3.70
- Package Height: 3.20
- Package Weight: 3.66
