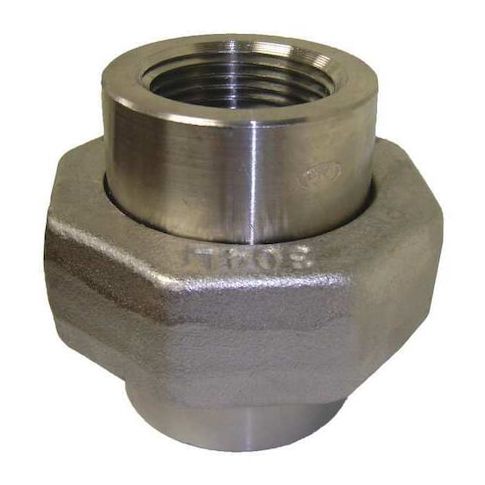

1/2" NPT 316 SS Union Class 6000 MPN:1000601718
The ZORO SELECT 1000601718 is a reliable and durable 316 stainless steel union designed for joining 1/2-inch pipe ends with female NPT connections. Ideal for use in natural gas, non-potable water, and oil piping systems, this union offers corrosion resistance and a maximum operating pressure of 3000 psi at 100°F. Meets MSS SP83 and SA182 standards, ensuring a secure and leak-free connection. With a temperature range of -20 to 100°F, this union is suitable for a variety of applications, including commercial and industrial settings, and provides a convenient three-piece design for easy connection and disconnection without rotating the pipes.
Top product features:
- 316 stainless steel for corrosion resistance.
- Female NPT threads on both sides with 14 threads per inch.
- Three-piece design allows for connection or disconnection without rotating the pipes.
Top product applications:
- Natural gas piping systems
- Non-potable water piping systems
- Oil piping systems
The ZORO SELECT - 1000601718 is a 316 stainless steel union designed to join two 1/2-inch pipe ends with female NPT connections on both sides, allowing them to be connected or disconnected without rotating the pipes. Three-piece design is rated to withstand pressure up to 3000 psi at 100°F and is intended for use with natural gas, non-potable water, and oil piping systems per MSS SP83 and SA182. It is rated for a maximum operating pressure of 3000 psi at 100 degrees Fahrenheit and complies with MSS SP83 and SA182 standards. Temperature range: -20 to 100°F. Key Features:
- - Material: 316 stainless steel for corrosion resistance.
- - Connection Type: Female NPT threads on both sides with 14 threads per inch.
- - Nominal Pipe Size: 1/2 inch on both Side A and Side B.
- - Pressure Class: Class 6000 with maximum operating pressure of 3000 psi @ 100°F.
- - Overall Length: 2 1/4 inches and hex size of 2 1/4 inches for wrench engagement.
- - Color: Silver finish consistent with stainless steel.
- - Does not include pre-applied thread sealant or sealing components.
- - For use with natural gas, non-potable water, and oil piping systems per MSS SP83 and SA182.
- - Standards: Meets MSS SP83 and SA182 specifications.
- - Temperature range: -20 to 100°F.
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 2.00
- Package Height: 2.00
- Package Weight: 1.50
