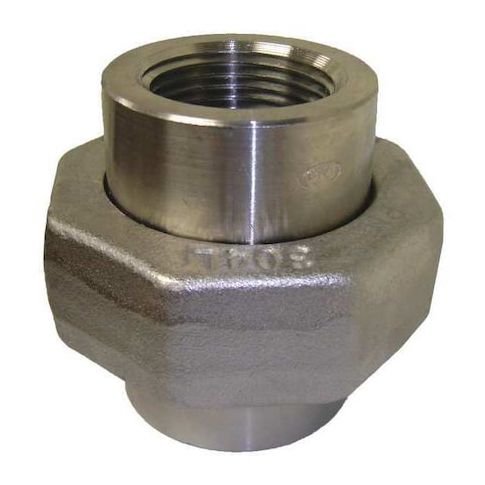

1 in NPT 316 Stainless Steel Union, Class 6000, Female x Female, 2-13/16 in Length MPN:2000601718
Connect and disconnect two 1-inch pipe ends with ease using the ZORO SELECT 316 stainless steel pipe union. This three-piece mechanical fitting forms a seal rated up to 3000 psi at 100°F, making it ideal for applications involving natural gas, non-potable water, and oil. The female NPT threaded connections on both ends ensure a secure and leak-free connection, while the 316 stainless steel material provides corrosion resistance for long-lasting performance. Suitable for use in temperatures ranging from -20 to 100°F, this union is perfect for a wide range of industrial and commercial applications, including plumbing, HVAC, and process piping.
Top product features:
- 316 stainless steel construction for corrosion resistance.
- Female NPT threaded connections on both ends.
- Forms a seal rated up to 3000 psi at 100°F.
Top product applications:
- Natural gas piping systems
- Non-potable water piping systems
- Oil piping systems
The ZORO SELECT - 2000601718 is a 316 stainless steel pipe union designed to connect and disconnect two 1-inch pipe ends without rotating the pipes. This three-piece mechanical fitting (body, nut, and mating seat or gasket) forms a seal rated up to 3000 psi at 100°F. It features female NPT threaded connections on both ends and is rated for Class 6000 pressure, supporting a maximum operating pressure of 3000 psi at 100 degrees F. Designed for use with natural gas, non-potable water, and oil within -20 to 100°F.
Key Features:
- - Material grade: 316 stainless steel for corrosion resistance.
- - Connection type: Female NPT threads on both ends with 11 1/2 pipe threading.
- - Nominal pipe size: 1 inch for both Side A and Side B connections.
- - Maximum operating pressure: 3000 psi @ 100°F, Class 6000 rating.
- - Overall length of 2 13/16 inches and hex wrench size of 3 inches.
- - Complies with MSS SP83 and SA182 standards.
- - Designed for applications involving natural gas, non-potable water, and oil.
- - Temperature range: -20 to 100 degrees F.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 14 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 3.03
