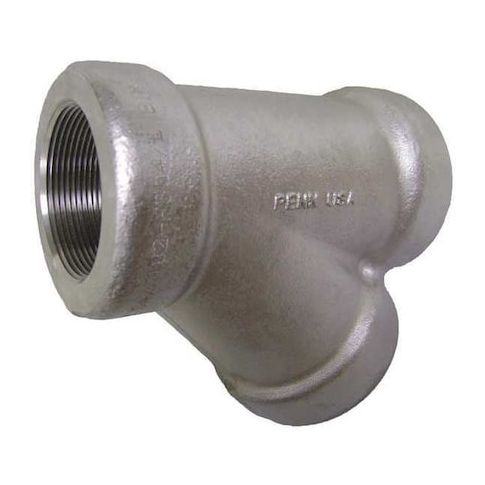

1/2" NPT 304 SS 45 Degree Lateral MPN:1000300612
The ZORO SELECT 1000300612 is a 45 Degree Lateral stainless steel pipe fitting designed for connecting branch lines to main runs at a 45° angle. Constructed from durable 304 Stainless Steel, this fitting features female NPT connections on all three ports, suitable for 1/2 inch nominal pipe size. Ideal for use in natural gas, non-potable water, and oil systems in process, drainage, and utility piping, this fitting meets standards LF2 ASME B16.11 and SA182. With a pressure rating of 3000 psi maximum at 100°F, this fitting offers reliable performance in a range of applications.
Top product features:
- This fitting connects branch lines to main runs at a 45° angle.
- The fitting features female NPT connections on all three ports.
- The fitting is made of 304 Stainless Steel.
Top product applications:
- natural gas systems
- non-potable water systems
- oil systems in process piping
The ZORO SELECT - 1000300612 is a 45 Degree Lateral stainless steel pipe fitting designed to connect branch lines to main runs at a 45° angle. Material: 304 Stainless Steel. This fitting features female NPT connections on all three ports, each sized at 1/2 inch nominal pipe size. Pressure Rating: 3000 psi maximum at 100°F. Applications: natural gas, non-potable water, and oil systems in process, drainage, and utility piping. The overall length of the fitting is 2 1/2 inches and it meets standards LF2 ASME B16.11 and SA182.
Key Features:
- - Material: 304 Stainless Steel
- - Configuration: 45 Degree Lateral with three female NPT connections
- - Nominal Pipe Size: 1/2 in on all ports
- - Connection Type: Female NPT threads with 14 threads per inch
- - Pressure Rating: 3000 psi maximum at 100°F
- - Temperature Range: -20°F to 100°F
- - Overall Length: 2 1/2 in
- - Applications: natural gas, non-potable water, and oil systems in process, drainage, and utility piping
- - Compliance: Meets LF2 ASME B16.11 and SA182 standards
- - Does not include pre-applied thread sealant or seals
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.00
