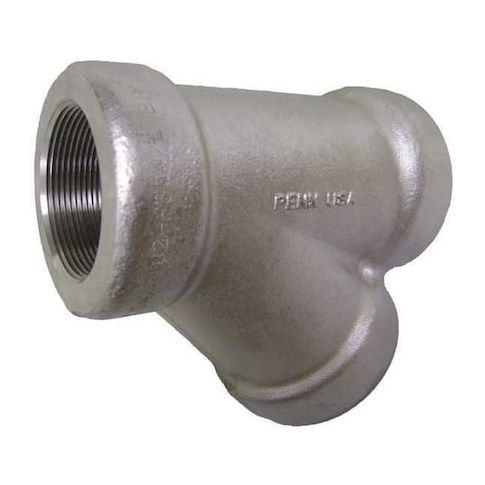

3/4" NPT 304 SS 45 Degree Lateral MPN:1500300612
This 45 Degree Lateral stainless steel pipe fitting is a versatile and reliable solution for connecting branch lines to main runs at a 45° angle. Built from 304 stainless steel, it provides exceptional corrosion resistance and strength, making it ideal for use in a variety of applications, including plumbing, HVAC, and industrial processes. With a maximum pressure rating of 3000 psi and a temperature range of -20°F to 100°F, this fitting is suitable for use in a range of environments. Its NPT female threaded connections make it easy to install and connect, making it a valuable addition to any piping system.
Top product features:
- Built from 304 stainless steel, it provides corrosion resistance and strength.
- Features NPT female threaded connections on all three sides, each sized at 3/4 inch nominal pipe size.
- Operates at a maximum pressure of 3000 psi at 100°F.
Top product applications:
- Plumbing and HVAC systems for residential and commercial buildings
- Industrial piping systems for chemical processing and oil and gas applications
- Medical gas systems and medical equipment installations
The ZORO SELECT - 1500300612 is a 45 Degree Lateral stainless steel pipe fitting used to connect a branch line to the main run at a 45° angle, providing a 45-degree branch connection between main run and branch line. Built from 304 stainless steel, it provides corrosion resistance and strength. This fitting operates at a maximum pressure of 3000 psi at 100°F. Operating temperature range: -20°F to 100°F. It features NPT female threaded connections on all three sides, each sized at 3/4 inch nominal pipe size.
Key Features:
- - Material Grade: 304 stainless steel
- - Pressure Rating: Class 3000, max operating pressure of 3000 psi @ 100°F
- - Connection Type: Female NPT threads on all three ports
- - Nominal Pipe Size: 3/4 inch on sides A, B, and C
- - Outside Diameter: 1 7/16 inches on sides A and B
- - Thread Size: 14 threads per inch on sides A, B, and C
- - Overall Length: 3 inches
- - Operating Temperature Range: -20°F to 100°F
- - Standards: Conforms to LF2 ASME B16.11, SA182
- - Fittings Sub-Category: Laterals
- - Color: Silver
- - Does not include pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.58
