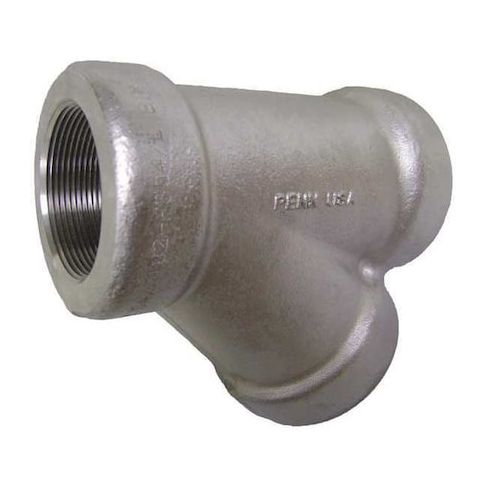

45° Lateral Wye Fitting, 304 Stainless Steel, 1 in NPT, Class 3000, 3.5 in Length MPN:2000300612

The ZORO SELECT - 2000300612 is a 45 Degree Lateral stainless steel pipe fitting designed to connect a branch line to a main pipe run at a 45° angle, facilitating a 45-degree branch connection in piping systems. It is constructed from 304 stainless steel. Material: 304 stainless steel. Intended for use in piping systems conveying natural gas, non-potable water, or oil, in compliance with applicable standards. This fitting accommodates pipes and threads sized at 1 inch nominal diameter and features three female NPT threaded connections for joining compatible piping. Key Features:

• - Constructed from 304 stainless steel material grade for strength and corrosion resistance.
• - Three female NPT threaded connections (side A, B, and C) with a nominal size of 1 inch and 11 1/2 pipe threads per inch.
• - Rated for a maximum operating pressure of 3000 psi at 100 Degrees F, classified as Class 3000.
• - Overall length measures 3 1/2 inches with each connection having an outside diameter of 1 3/4 inches.
• - Meets standards LF2 ASME B16.11 and SA182 for material and dimensional specifications.
• - Designed for use within a temperature range of -20 Degrees to 100 Degrees F.
• - Threaded sealing surfaces do not include pre-applied thread sealant, and no separate sealing component is included.
