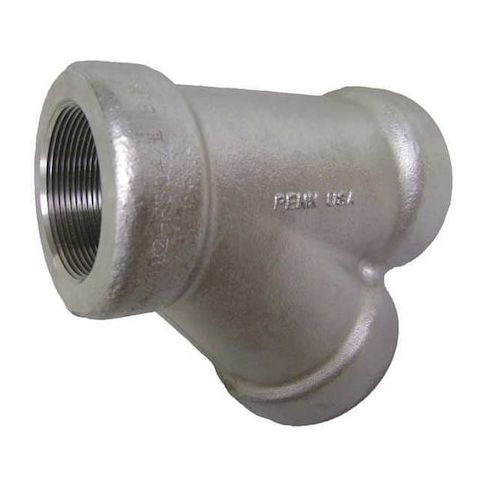

45° Lateral Wye, 304 Stainless Steel, 1-1/2 in NPT, Class 3000 MPN:3000300612
The 45° Lateral Wye from GoVets Select is a versatile and durable stainless steel pipe fitting designed for use in systems handling natural gas, non-potable water, and oil. Constructed from 304 stainless steel, this fitting provides excellent corrosion resistance and can withstand operating pressures of up to 3000 psi at 100°F. Its 45° angle design allows for seamless connections between three pipes, making it ideal for a wide range of applications, including plumbing, HVAC, and industrial processes. With its compact 4 1/2-inch length and female NPT threaded connections, this fitting is a reliable choice for demanding environments.
Top product features:
- 304 Stainless Steel construction for durability and corrosion resistance.
- Connects three pipes at a 45° angle for flexible piping configurations.
- Female NPT threaded connections on all three ends for easy and secure pipe attachment.
Top product applications:
- Natural Gas Distribution Systems
- Oil Refinery Pipework
- Non-Potable Water Supply Systems
The ZORO SELECT - 3000300612 is a 45 Degree Lateral stainless steel pipe fitting designed to connect three pipes at a 45° angle. Constructed from 304 stainless steel
- suitable for use in systems handling natural gas, non-potable water, and oil. It features female NPT threaded connections on all three ends sized at 1 1/2 inches nominal pipe size, facilitating pipe runs of the same diameter. The fitting is rated for a maximum operating pressure of 3000 psi at 100 degrees Fahrenheit and operates within a temperature range of -20 to 100 degrees Fahrenheit.
Key Features:
- - Material: 304 Stainless Steel construction for durability and corrosion resistance.
- - Shape: 45 Degree Lateral connecting branch line at a 45° angle to the main pipe.
- - Connection Type: Female NPT threads on Side A, B, and C for threaded pipe attachment.
- - Nominal Pipe Size: 1 1/2 inches on all three connection ends.
- - Pressure Rating: Class 3000, supporting up to 3000 psi @ 100°F.
- - Length: Overall length of 4 1/2 inches.
- - Suitable for conveying natural gas, non-potable water, and oil.
- - Meets standards LF2 ASME B16.11 and SA182 for dimension and material specifications.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 5.20
