1/2 in Socket Weld 304 Stainless Steel 45° Lateral Pipe Fitting, Class 3000 MPN:1001300612

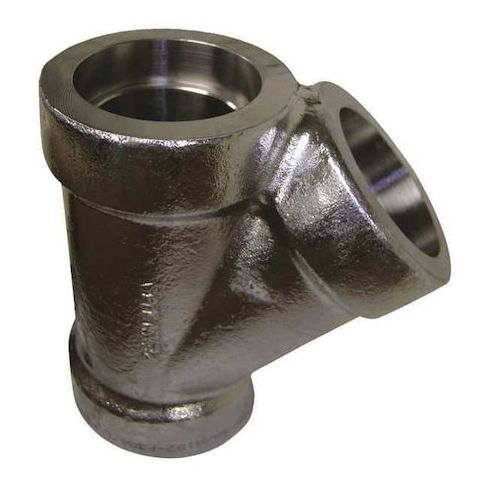

The ZORO SELECT 1001300612 is a 45 Degree Lateral stainless steel pipe fitting designed to connect a branch line to the main run at a 45° angle, creating a 45-degree offset junction. Constructed from durable 304 stainless steel, it's suitable for natural gas, non-potable water, and oil service within specific pressure and temperature ratings. With a maximum operating pressure of 3000 psi at 100°F and a temperature range of -20°F to 100°F, this fitting offers reliability and versatility. Its compact design and silver finish make it an ideal choice for various industrial and commercial applications, including piping systems and equipment installations.
Top product features:
- 304 Stainless Steel construction
- 45 Degree Lateral design with three female socket weld connections
- Socket weld connections on all three female ends, each sized for 1/2 inch nominal pipe size
Top product applications:
- natural gas
- non-potable water
- oil service
The ZORO SELECT - 1001300612 is a 45 Degree Lateral stainless steel pipe fitting designed to connect a branch line to the main run at a 45° angle, producing a 45-degree offset junction between the branch line and the main run. Constructed from 304 stainless steel, Applications: natural gas, non-potable water, and oil service within the specified pressure and temperature ratings. The fitting is rated for a maximum operating pressure of 3000 psi at 100°F and operates within a temperature range of -20°F to 100°F. It features socket weld connections on all three female ends, each sized for 1/2 inch nominal pipe size. Key Features:
- - Material: 304 Stainless Steel
- - Shape: 45 Degree Lateral with three female socket weld connections
- - Nominal Pipe Size: 1/2 inch for all three connections
- - Pressure Rating: Class 3000, max 3000 psi @ 100°F
- - Temperature Range: -20°F to 100°F
- - Overall Length: 2 7/16 inches
- - Color: Silver
- - Standards: LF2 ASME B16.11, SA182
- - Application: Suitable for natural gas, non-potable water, and oil
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.94
