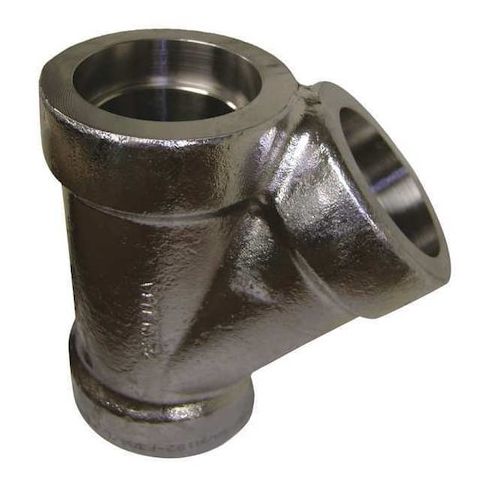

3/4" Socket Weld 304 SS 45 Degree Lateral MPN:1501300612
The ZORO SELECT 1501300612 is a 304 stainless steel 45 degree lateral fitting designed to connect three pipes with a gentle offset at a 45° angle. Constructed from corrosion-resistant 304 stainless steel, it offers strength and durability for use in systems conveying natural gas, non-potable water, or oil. With a maximum pressure rating of 3000 psi at 100°F, this fitting is suitable for a variety of applications, including industrial piping, oil and gas exploration, and water treatment facilities. Its compact design and corrosion-resistant properties make it an ideal choice for demanding environments.
Top product features:
- Made of 304 stainless steel for corrosion resistance and strength
- Socket weld connection type on all ports
- Female gender on all connection ends
Top product applications:
- Systems conveying natural gas
- Systems conveying non-potable water
- Systems conveying oil
The ZORO SELECT - 1501300612 is a stainless steel 45 degree lateral fitting designed to connect three pipes with a gentle offset at a 45° angle. Constructed from 304 stainless steel, it offers corrosion resistance and durability. It features socket weld connections on all ports, with female gender on each end, and is rated for a maximum pressure of 3000 psi at 100°F. The fitting has a total length of approximately 2 15/16 inches and is suitable for use in systems conveying natural gas, non-potable water, or oil.
Key Features:
- - Made of 304 stainless steel for corrosion resistance and strength
- - Class 3000 pressure rating with a maximum working pressure of 3000 psi
- - Socket weld connection type on all ports
- - Female gender on all connection ends
- - Nominal pipe size of 3/4 inch on each port, with outside diameter of 1 3/4 inches
- - Specific shape: 45 Degree Lateral for offset pipe connections
- - Standards: LF2 ASME B16.11, SA182
- - Temperature range: -20°F to 100°F
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.54
