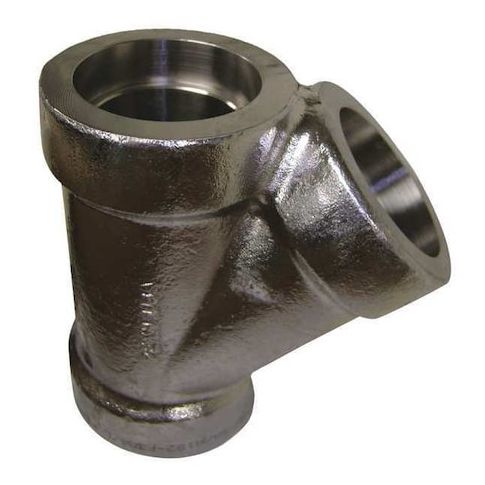

1" Socket Weld 304 SS 45 Degree Lateral MPN:2001300612
The 1in Socket Weld 304 SS 45 Degree Lateral from GoVets Select is a reliable and versatile pipe fitting designed for use in natural gas, non-potable water, and oil conveyance systems. Constructed from 304 stainless steel, it provides a 45-degree lateral branch connection, rated for operation up to 3000 psi within a temperature range of -20 to 100 degrees Fahrenheit. Its durable design and compliance with LF2 ASME B16.11 and SA182 standards make it an excellent choice for applications where high pressure and temperature resistance are required. Perfect for industries such as oil and gas, water treatment, and more.
Top product features:
- Forms a 45-degree lateral branch connection between three female socket weld ends of 1 inch nominal pipe size.
- Constructed from 304 stainless steel for durability and resistance to corrosion.
- Rated for operation up to 3000 psi within a temperature range of -20 to 100 degrees Fahrenheit.
Top product applications:
- Natural gas conveyance systems
- Non-potable water systems
- Oil conveyance systems
The ZORO SELECT - 2001300612 is a 45 Degree Lateral stainless steel pipe fitting constructed from 304 stainless steel, designed to form a branch connection at a 45° angle. It connects three female socket weld ends of 1 inch nominal pipe size, providing a 45-degree lateral branch connection. Intended for use in natural gas, non-potable water, and oil conveyance systems, rated for operation up to 3000 psi within a temperature range of -20 to 100 degrees Fahrenheit. It complies with LF2 ASME B16.11 and SA182 standards.
Key Features:
- - Material: 304 stainless steel
- - Shape: 45 Degree Lateral with three female socket connections, nominal size 1 inch.
- - Pressure Rating: Rated for operation up to 3000 psi within a temperature range of -20 to 100 degrees Fahrenheit.
- - Connection Type: Socket weld ends on all three sides.
- - Intended for natural gas, non-potable water, and oil conveyance systems.
- - Dimensions: Overall length of 3 7/16 inches with 2 1/8 inch outside diameter on each port.
- - Operating Temperature Range: -20 degrees Fahrenheit to 100 degrees Fahrenheit.
- - Standards: LF2 ASME B16.11, SA182.
- - No pre-applied thread sealant or included seals.
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 5 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 2.34
