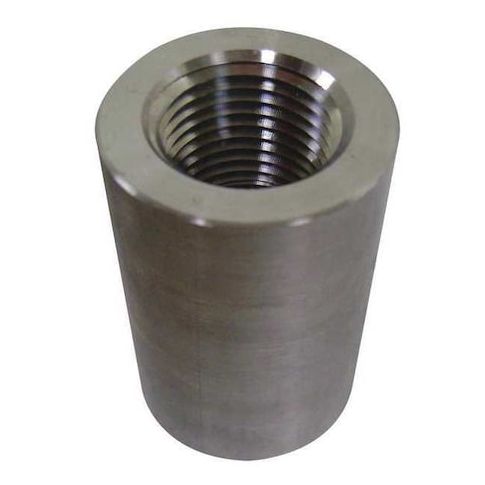

1 in FSW x FNPT 304 Stainless Steel Coupling, Class 3000, Female x Female, 2-3/8 in Length MPN:2003006012

• The ZORO SELECT - 2003006012 is a stainless steel coupling designed to join two 1-inch pipes or tubes in a straight line to create a continuous flow path. Constructed from 304 stainless steel. This coupling features a female threaded connection on one end (FSW) and a socket connection on the other, rated for a maximum operating pressure of 3000 psi at 100 degrees F. It meets LF2 ASME B16.11 and SA182 standards, and operates within a temperature range of -20 to 100 degrees F.

  Key Features:

  • - Pipe size: 1 inch on both connection ends.
  • - Connection types: Female socket weld (FSW) x Female national pipe thread (FNPT).
  • - Material: 304 stainless steel.
  • - Pressure rating: Class 3000 with a maximum pressure of 3000 psi at 100 degrees F.
  • - Overall length of 2 3/8 inches.
  • - Standards compliance: LF2 ASME B16.11 and SA182.
  • - Operating temperature range from -20 degrees to 100 degrees Fahrenheit.
  • - Thread pitch on threaded end: 11 1/2 TPI with NPT threading.
  • - Both ends have female gender connections
  • one socket type and one threaded type.
  • - Color: Silver.
