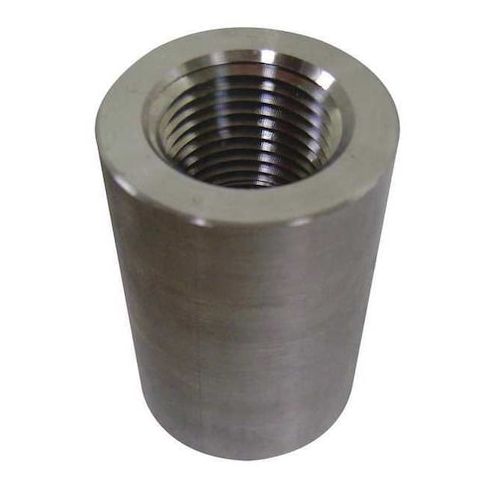

1-1/2 in 304 Stainless Steel Coupling, Class 3000, FSW x FNPT, Female x Female MPN:3003006012

The ZORO SELECT - 3003006012 is a 304 stainless steel coupling designed to connect two pipes in a straight line, enabling a continuous flow path. Its dual connection types consist of a female threaded NPT end and a female socket end, both sized for 1-1/2 inch nominal pipe diameter. Rated for operation within the specified pressure and temperature ranges and designed for use with non-potable water, oil, and natural gas within specified parameters, this coupling fits within Class 3000 pressure specifications and conforms to applicable industry standards. The fitting operates within a temperature range of -20°F to 100°F and features a silver finish.

Key Features:

• - Material: 304 Stainless Steel.
• - Connections: Female threaded NPT at Side A (1-1/2 in, 11 1/2 TPI) x Female socket at Side B (1-1/2 in nominal size).
• - Maximum Operating Pressure: 3000 psi @ 100 Degrees F, Classified as Class 3000.
• - Dimensions: Overall length of 3 1/8 in, Side A outside diameter 2 15/16 in, Side B outside diameter 2 3/8 in.
• - Applications: Suitable for natural gas, non-potable water, and oil service.
• - Standards: Conforms to applicable industry standards.
• - Operating Temperature Range: -20°F to 100°F.
• - Does not include pre-applied thread sealant or sealing components.
