3/4 in 316 Stainless Steel Coupling, Female Socket x Female NPT, Class 3000, 2 in Length MPN:1503006018

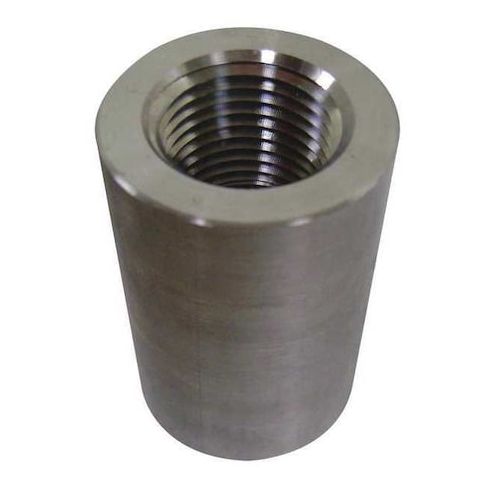

The ZORO SELECT - 1503006018 is a stainless steel coupling designed to join two pipes in a straight line, allowing continuous flow through systems handling natural gas, non-potable water, and oil. It is constructed from 316 stainless steel, providing corrosion resistance and strength. This coupling features a combination of Female Socket Weld (FSW) connection on one end and Female National Pipe Thread (FNPT) connection on the other. The product is rated for operation within the specified pressure range of up to 3000 psi at 100°F and is rated for operation within the specified temperature range of -20°F to 100°F.

Key Features:

• - Material: 316 stainless steel
• - Connection: Female Socket Weld x Female NPT
• - Nominal pipe size: 3/4 inch on both ends
• - Outside diameter: 1 1/2 inch at Side A, 1 3/4 inch at Side B
• - Length: 2 inches overall
• - Thread size on Side A: 14 threads per inch, NPT type
• - Standards: LF2 ASME B16.11, SA182
• - Does not include pre-applied thread sealant or sealing components
• - Color: Silver
