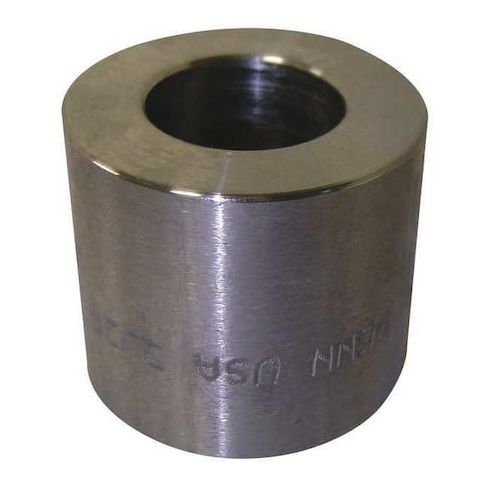

3/4" x 1/4" MSW x FNPT 304 SS Adapter MPN:1473009312

• The ZORO SELECT - 1473009312 is a stainless steel adapter pipe fitting designed to join components with differing connection types and sizes. Use of the product in specific applications should be verified for compatibility with intended substances. This adapter features a female Side A NPT connection sized at 1/4 inch and a male Side B socket connection sized at 3/4 inch, facilitating transition between these two fitting standards. It is rated for operation within the specified pressure and temperature ranges, supporting service pressures up to 3,000 psi at 100 degrees F, with an operating temperature range from -20 to 100 degrees F.

  Key Features:

  • - Material: 304 stainless steel, providing durability and corrosion resistance.
  • - Connections: Female 1/4" NPT on Side A and Male 3/4" Socket weld on Side B.
  • - Pressure Rating: Rated for operation within the specified pressure and temperature ranges.
  • - Temperature Range: Operates between -20°F and 100°F.
  • - Dimensions: Overall length of 1 3/8 inches
  • Side A outside diameter 1 inch
  • Side B outside diameter 1 inch.
  • - Threading on Side A: 18 threads per inch, NPT type threads.
  • - Standards Compliance: LF2 ASME B16.11, SA182.
  • - Color: Silver.
