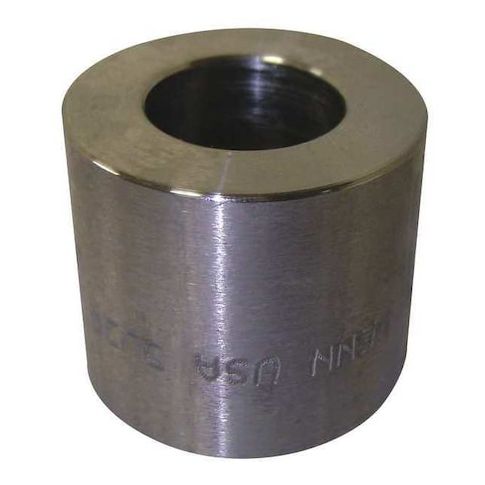

Adapter, 304 Stainless Steel, 3/4 in x 1/2 in, Female NPT x Male Socket, Class 3000 MPN:1493009312
Connect disparate components with ease using our 304 Stainless Steel Adapter. Featuring a female NPT connection and a male socket connection, this adapter bridges the gap between different thread standards and sizes. Suitable for applications where high-pressure and corrosion resistance are crucial, such as in chemical processing, oil and gas, and pharmaceutical industries. With a maximum operating pressure of 3000 psi at 100°F, this adapter is perfect for connecting 3/4-inch and 1/2-inch nominal pipe sizes. Its compact design and durable construction make it an ideal solution for a variety of industrial applications.
Top product features:
- This stainless steel adapter connects components with different connection types, thread standards, or sizes.
- The adapter features a female threaded end for a 1/2-inch nominal pipe size and a socket connection for a 3/4-inch nominal size.
- The adapter is compatible with fluids within the rated pressure and temperature limits for 304 stainless steel.
Top product applications:
- Industrial Process Piping: The stainless steel adapter can be used to connect pipes with different thread standards or sizes in industrial process piping systems, such as chemical plants or oil refineries.
- Laboratory Equipment: This adapter can be used to connect laboratory equipment, such as pumps or valves, to pipes with different thread standards or sizes, allowing for easy integration of new equipment into existing systems.
- Hydraulic System Repair: The stainless steel adapter can be used to repair or replace hydraulic systems by connecting hoses or pipes with different thread standards or sizes, allowing for a quick and easy solution to system failures.
This stainless steel adapter is designed to connect components with different connection types, thread standards, or sizes. It features a female threaded end (Fitting Side A) for a 1/2-inch nominal pipe size and a socket connection (Fitting Side B) for a 3/4-inch nominal size. Fluid compatibility: compatible with fluids within the rated pressure and temperature limits for 304 stainless steel. Maximum operating pressure: 3000 psi at 100°F.
Key Features:
- - Material: 304 stainless steel
- Maximum pressure rating: 3000 psi
- - Connection Types: MSW (Male Slip) x FNPT (Female National Pipe Thread)
- - Dimensions: Overall length 2 1/8 inches
- - Fitting Side A: Female thread, 1/2 inch nominal size, outside diameter 1 1/8 inches, 14 threads
- - Fitting Side B: Socket connection, 3/4 inch nominal size, outside diameter 1/4 inches, standard socket type
- - Standards: LF2 ASME B16.11, SA182
- - Maximum operating pressure: 3000 psi at 100°F
- - Temperature Range: -20°F to 100°F
- - Additional Attributes: Includes no pre-applied thread sealant or seal components
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 0.29
