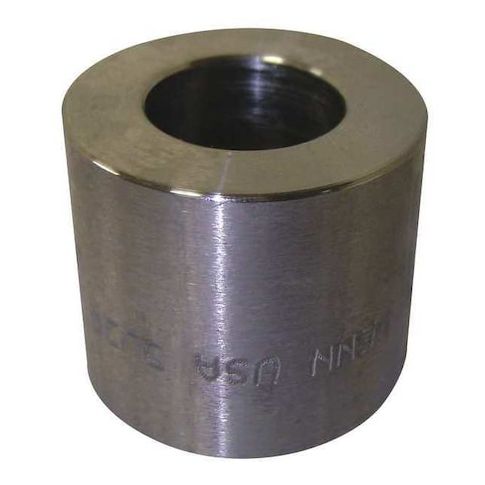

2" x 1-1/4" MSW x FNPT 304 SS Adapter MPN:3983009312
This 304 stainless steel adapter pipe fitting is designed for joining components with different connection types and sizes. It connects a 1 1/4 in NPT threaded end to a 2 in male socket end, making it ideal for plumbing, HVAC, and industrial applications. The adapter's high-pressure rating and wide temperature range make it suitable for demanding environments. Its compact design and durable construction ensure reliable performance and long-lasting service. Use this adapter to connect pipes in high-pressure systems, such as oil and gas distribution, water treatment, and chemical processing. Its versatility and durability make it a valuable addition to any plumbing or industrial setup.
Top product features:
- Fitting connection types: MSW (male socket weld) x FNPT (female national pipe thread)
- Connects a female threaded end with a 1 1/4 in nominal pipe size using NPT threads to a male socket end with a 2 in nominal pipe size
- Manufactured from 304 stainless steel for corrosion resistance and durability
Top product applications:
- 2in x 1-1/4in MSW x FNPT 304 SS Adapter from GoVets Select is used as a pipe fitting to join two components with different connection types and sizes in a plumbing system.
- The adapter can be used to connect a female threaded end with a 1 1/4 in nominal pipe size using NPT threads to a male socket end with a 2 in nominal pipe size in a hydraulic system.
- The ZORO SELECT 3983009312 stainless steel adapter pipe fitting can be used to join two components with different connection types and sizes in a piping system for industrial applications.
The ZORO SELECT - 3983009312 is a stainless steel adapter pipe fitting designed to join two components with different connection types and sizes. It connects a female threaded end with a 1 1/4 in nominal pipe size using NPT threads to a male socket end with a 2 in nominal pipe size. The adapter is manufactured from 304 stainless steel. The fitting meets standards LF2 ASME B16.11 and SA182 and is rated for a maximum operating pressure of 3000 psi at 100 degrees Fahrenheit, with an operating temperature range from -20 degrees to 100 degrees Fahrenheit. Key Features:
- - Fitting connection types: MSW (male socket weld) x FNPT (female national pipe thread)
- - Fitting size: 2" (male socket end) x 1-1/4" (female threaded end)
- - Material grade: 304 stainless steel
- - Pressure rating: Class 3000, maximum operating pressure of 3000 psi @ 100°F
- - Operating temperature range: -20°F to 100°F
- - Overall length: 1 3/4 inches
- - Does not include pre-applied thread sealant or separate sealing components
- - Color: Silver
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 3 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 1.00
- Package Width: 1.00
- Package Height: 1.00
- Package Weight: 1.11
