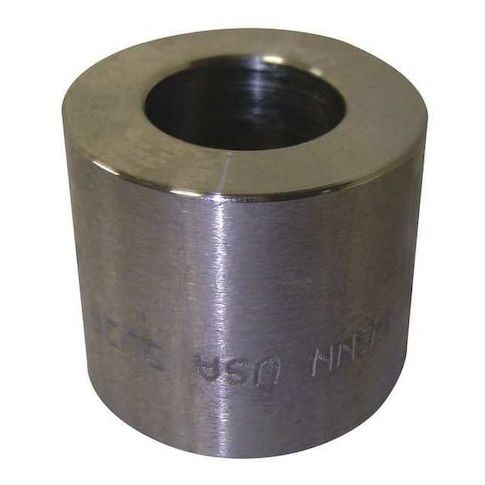

Adapter, 316 Stainless Steel, 1 in x 3/4 in MSW x FNPT, Class 3000, 3000 psi Max Pressure MPN:1993009318

• This stainless steel adapter is designed to connect components with different connection types, sizes, or thread standards within process, plumbing, or industrial systems.

  Its corrosion-resistant material and pressure rating of up to 3000 psi @ 100°F specify maximum pressure and temperature ratings

• avoid guarantees of performance. It features a threaded connection with a female 3/4-inch nominal pipe size on one end (Side A) with an outside diameter of 1 3/8 inches, and a socket connection with a male 1-inch nominal pipe size on the other end (Side B) with an outside diameter of 1 1/2 inches.

  Key Features:

  • - Material Grade: 316 stainless steel, providing corrosion resistance.
  • - Standard Compliance: LF2 ASME B16.11, SA182.
  • - Pressure Rating: Rated for use up to 3000 psi at 100°F.
  • - Connection Types: MSW (Male Slip) x FNPT (Female NPT) on Side A
  • Socket on Side B.
  • - Sizes: 3/4 in (Side A) female threaded
  • 1 in (Side B) socket.
  • - Overall Length: 2 15/16 inches.
  • - Temperature Range: -20°F to 100°F.
  • - Includes no pre-applied thread sealant or seals.
