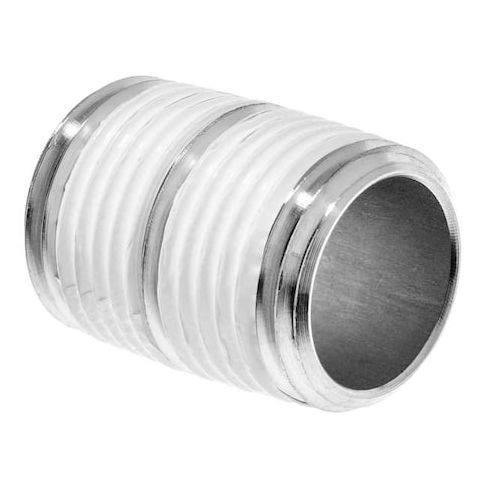

1/4 in Stainless Steel Pipe Nipple, Schedule 40, 304 SS, 7/8 in Length, Male NPT Threads MPN:ZUSA-PF-1342

• The ZORO SELECT - ZUSA-PF-1342 is a stainless steel nipple designed to connect two female-threaded fittings, valves, or pipes. It features male NPT threads on both ends (Side A and Side B) with a fully threaded configuration. Constructed of 304 stainless steel with welded pipe construction and electric resistance weld type, this nipple is compatible with Schedule 40 piping and has an inside diameter of 3/8 inch and a nominal pipe size of 1/4 inch. Maximum operating pressure: 150 psi at 72°F

• maximum steam pressure: 150 psi at 360°F.

  Key Features:

  • - Material: 304-grade stainless steel for corrosion and chemical resistance.
  • - Fully threaded on both ends with close thread, male NPT connections.
  • - Compatible with Schedule 40 pipe systems.
  • - Maximum operating pressure: 150 psi at 72°F
  • maximum steam pressure: 150 psi at 360°F.
  • - Pipe construction: Welded with electric resistance weld seam.
  • - Dimensions: Inside diameter 3/8", outside diameter 27/32", overall length 7/8", wall thickness 0.109".
  • - 304-grade stainless steel provides corrosion and chemical resistance
  • UV resistance not specified
  • no explicit diesel or oil resistance claims.
  • - Meets standards ANSI/ASME B1.20.1, ASTM A312, and ASTM A733.
