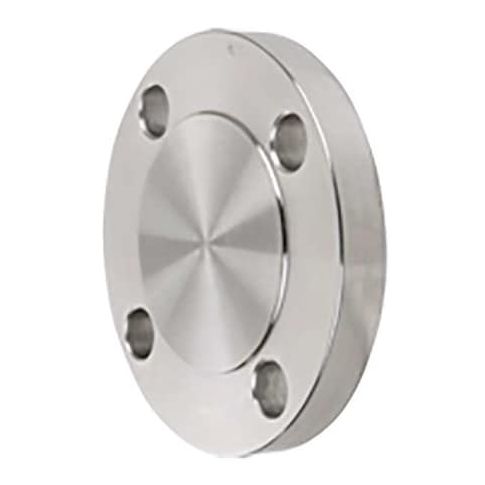

Blind Flange, 316/316L Stainless Steel, 1-1/4 in Nominal, Class 150, Raised Face MPN:4381001830

• The ZORO SELECT - 4381001830 is a stainless steel pipe flange rated for use as a blind flange suitable for sealing pipe ends, used to close off the end of a pipe or pressure vessel opening. It is designed to be bolted to compatible flanges with gasket sealing. This flange is made from 316/316L stainless steel, which offers corrosion resistance intended for use within compatible piping systems, conforming to specified standards. It features a raised face connection surface, which features designed for sealing when properly installed in accordance with standard installation procedures.

  Key Features:


  • - Nominal Pipe Size: 1 1/4 in
  • - Flange Outside Diameter: 4 9/16 in
  • - Flange Thickness: 9/16 in
  • - Bolt Circle Diameter: 3 1/2 in
  • - Number of Bolt Holes: 4
  • - Bolt Hole Diameter: 5/8 in
  • - Rated for use within Class 150 pressure ranges as specified by industry standards
  • - Material Grade: 316/316L stainless steel
  • - Fitting Shape: Blind Flange, solid and flat for sealing pipe ends
  • - Connection Surface: Raised Face
  • - Meets specific industry standards for material and dimensions
  • see applicable documentation for more information
