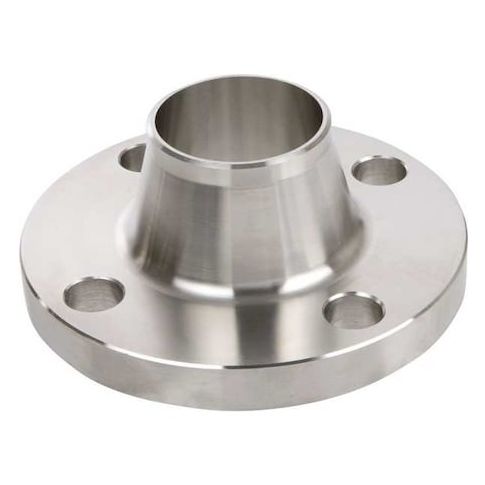

Flange, Stainless Steel, 7 in MPN:4381001650
This stainless steel pipe flange is designed for forming joints with gaskets and bolts in piping connections, ensuring a secure seal under standard piping practice. Made from 316/316L stainless steel, it meets ASME A182 and ASME B16.5 standards. With a raised face design and 4 bolt holes, it provides a reliable connection for various industrial applications, including chemical processing, oil and gas, and water treatment. Its durable construction and corrosion-resistant properties make it an ideal choice for high-pressure and high-temperature environments, ensuring a long-lasting and leak-free performance.
Top product features:
- Seals with gaskets and bolts under standard piping practice.
- Features a raised face design for sealing contact.
- Made from 316/316L stainless steel construction for durability.
Top product applications:
- Chemical Processing: The 316/316L stainless steel construction makes this flange suitable for use in chemical processing applications where resistance to corrosion and high temperatures is required.
- Oil and Gas Industry: The raised face design and 4 bolt holes make this flange suitable for use in oil and gas industry applications where a secure and leak-tight connection is necessary.
- Pulp and Paper Industry: The 316/316L stainless steel construction and raised face design make this flange suitable for use in pulp and paper industry applications where resistance to corrosion and high temperatures is required.
This stainless steel pipe flange features a raised face design with a bolt circle diameter of 5 1/2 inches, a flange outside diameter of 7 inches, and a flange thickness of 7/8 inches. It has a nominal pipe size of 2 1/2 inches and includes four bolt holes with a diameter of 3/4 inches. Made from 316/316L stainless steel construction, suitable for forming joints with gaskets and bolts for piping connections, intended to seal with gaskets and bolts under standard piping practice. The flange conforms to ASME A182 and ASME B16.5 standards.
Key Features:
- - Material: 316/316L Stainless Steel
- - Connection Surface: Raised Face for sealing contact
- - Flange Outside Diameter: 7 in
- - Flange Thickness: 7/8 in
- - Nominal Pipe Size: 2 1/2 in
- - Bolt Circle Diameter: 5 1/2 in
- - Bolt Hole Diameter: 3/4 in
- - Number of Bolt Holes: 4
- - Specific Fitting Shape: Schedule 80 Weld Neck Flange
- - Standards: ASME A182
- ASME B16.5
Additional Information
- Country of Origin: VN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 7.00
- Package Height: 2.75
- Package Weight: 9.70
