Blind Flange, Raised Face, 1.5 in Nominal Pipe Size, 304/304L Stainless Steel, Class 150 MPN:4381000040
Blind Flange, Raised Face, 1.5 in Nominal Pipe Size, 304/304L Stainless Steel, Class 150

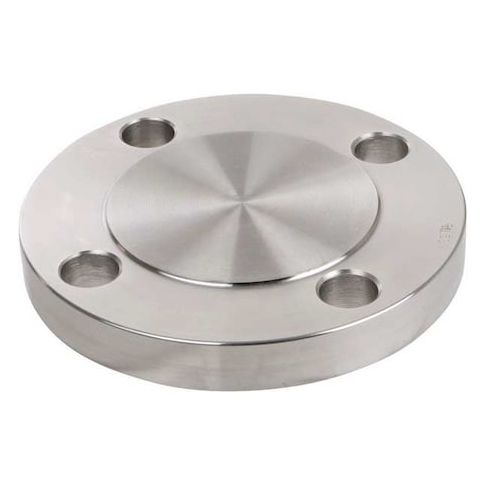

The ZORO SELECT - 4381000040 is a stainless steel pipe flange manufactured from 304/304L stainless steel, meeting the material specifications outlined in ASME A182 and ASME B16.5 standards. It is intended for use as a sealed termination point in piping systems. It facilitates connection with gaskets and bolts according to standard installation procedures. It has a nominal pipe size of 1 1/2 inches and features a raised face connection surface.
Key Features:
- - Class 150 pressure rating, rated for operation within the specified pressure ranges.
- - Four bolt holes, each with a diameter of 5/8 inch, arranged on a bolt circle diameter of 3 7/8 inches.
- - Flange outside diameter: 5 inches
- flange thickness: 3/4 inch.
- - Manufactured from stainless steel grade 304/304L.
- - Designed to serve as a sealed termination point when properly installed with compatible flanges and gaskets.
- - Conforms to ASME A182 and ASME B16.5 standards.
- - Raised face connection surface to improve gasket sealing performance.
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.00
- Package Width: 5.00
- Package Height: 0.80
- Package Weight: 3.50
Product info last updated on February 1, 2026 9:21pm UTC
Category: Pipes, Valves and Fittings
