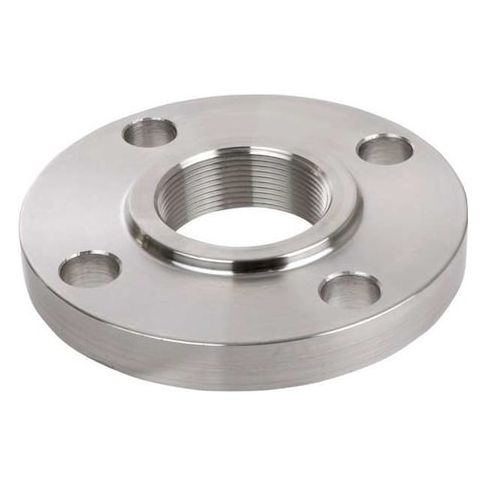

Pipe Flange, Floor Flange, 6 in, 304/304L Stainless Steel, Class 150, Raised Face MPN:4381001100
The ZORO SELECT - 4381001100 is a 6-inch nominal pipe size stainless steel pipe flange designed for use in a variety of industrial applications. Made from 304/304L stainless steel, this floor flange provides a boltable surface for joining pipes, valves, pumps, or equipment, supporting pressure-tight joints with gaskets and bolts. With a pressure rating of Class 150 and a maximum operating pressure of 150 psi, this flange is ideal for use in high-pressure applications. Its raised face connection surface and compliance with ASME B16.5 and ASTM A182 standards ensure a secure and reliable connection in a range of industries, including oil and gas, chemical processing, and power generation.
Top product features:
- It provides a boltable surface for joining pipes, valves, pumps, or equipment, supporting pressure-tight joints with gaskets and bolts.
- It features a raised face connection surface.
- It is pressure rated at Class 150, with a maximum operating pressure of 150 psi.
Top product applications:
- Joining pipes to pumps
- Joining valves to pipes
- Connecting equipment to pipes
The ZORO SELECT - 4381001100 is a 6-inch nominal pipe size stainless steel pipe flange made from 304/304L stainless steel. It features a raised face connection surface and conforms to ASME B16.5 and ASTM A182 standards. Designed as a floor flange, it provides a boltable surface for joining pipes, valves, pumps, or equipment, supporting pressure-tight joints with gaskets and bolts. This flange is pressure rated at Class 150, with a maximum operating pressure of 150 psi.
Key Features:
- - Material: 304/304L Stainless Steel
- - Nominal Pipe Size: 6 in
- - Pressure Class: 150
- - Maximum Operating Pressure: 150 psi
- - Flange Thickness: 1 in
- - Flange Outside Diameter: 11 in
- - Bolt Circle Diameter: 9 1/2 in
- - Number of Bolt Holes: 8
- - Bolt Hole Diameter: 7/8 in
- - Connection Surface: Raised Face
- - Specific Fitting Shape: Floor Flange
- - Standards: ASME B16.5
- ASTM A182
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 11.00
- Package Width: 11.00
- Package Height: 1.90
- Package Weight: 19.04
