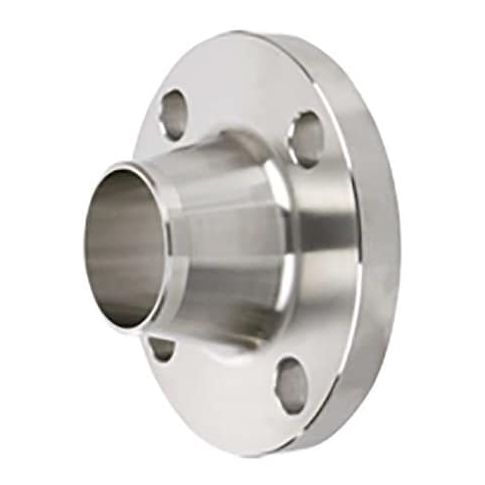

Pipe Flange, Schedule 80, 1 in Nominal Pipe Size, 316/316L Stainless Steel, Raised Face MPN:4381006420

The ZORO SELECT - 4381006420 is a stainless steel pipe flange designed for pipe, valve, pump, or equipment connections. It features a bolt circle diameter of 3 1/8 inches, an outside diameter of 4 7/8 inches, and a flange thickness of 11/16 inches, as specified. Constructed from 316/316L stainless steel alloy as specified, it provides corrosion resistance. The flange has four bolt holes measuring 5/8 inches in diameter and a raised face connection surface, conforming to standards like ASME A182, ASME B1.20.1, and ASME B16.5.

Key Features:

• - Bolt Circle Diameter: 3 1/8 in, specifying the distance across bolt hole centers.
• - Bolt Hole Diameter: 5/8 in, indicating the size of bolt holes for securing the flange.
• - Connection Surface: Raised Face, defining the mating contact area for sealing.
• - Flange Outside Diameter: 4 7/8 in, the overall outside dimension of the flange.
• - Flange Thickness: 11/16 in, specifies a flange thickness of 11/16 inches.
• - Material Grade: 316/316L stainless steel, ensuring corrosion resistance.
• - Nominal Pipe Size: 1 in, compatible with 1-inch nominal pipes according to industry standards.
• - Number of Bolt Holes: 4, features four bolt holes of 5/8 inches diameter for connection.
• - Specific Fitting Shape: Schedule 80 Weld Neck Flange, indicating the flange’s geometric shape and connection type.
• - Standards: ASME A182, ASME B1.20.1, ASME B16.5, ensuring conformity to industry specifications.
