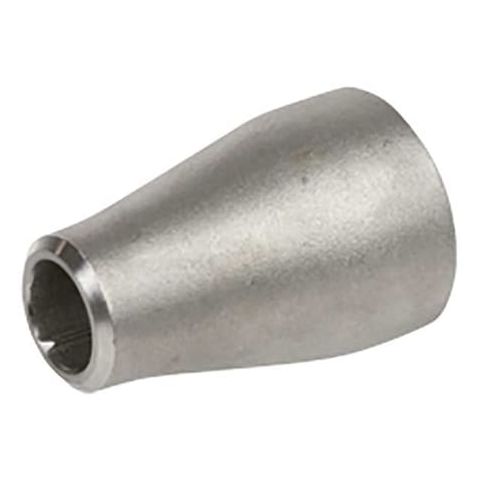

SS, Reducer, 11/4"x3" MPN:4381012600
The ZORO SELECT 4381012600 is a high-performance stainless steel concentric reducer designed to join pipes of different diameters while maintaining their centerlines aligned. Ideal for applications where centerline continuity is crucial, such as vertical runs and process piping systems, this reducer provides a smooth, axial transition to change flow area with minimal turbulence and pressure loss. Constructed from 316 stainless steel, it offers corrosion resistance and durability, and is rated for a maximum operating pressure of 275 psi at 150°F. Its compact design and secure butt weld connections make it a reliable choice for industrial and commercial use.
Top product features:
- Construction from 316 stainless steel, which provides corrosion resistance and durability.
- Provides a smooth, axial transition to change flow area with minimal turbulence and pressure loss.
- Butt Weld connections on both sides, providing a secure, permanent connection.
Top product applications:
- Vertical runs
- Process piping systems
- Industrial piping systems
The ZORO SELECT 4381012600 is a stainless steel concentric reducer designed to join pipes of different diameters while maintaining their centerlines aligned. It provides a smooth, axial transition to change flow area with minimal turbulence and pressure loss, supporting applications where centerline continuity is important, such as vertical runs and process piping systems. Constructed from 316 stainless steel, which provides corrosion resistance and durability, it is rated for a maximum operating pressure of 275 psi at 150°F.
Key Features:
- - Material Grade: 316 Stainless Steel, offering corrosion resistance and durability.
- - Fitting Side A Nominal Pipe Size: 1 1/4 in, compatible with standard pipe sizes.
- - Fitting Side B Nominal Pipe Size: 3 in, compatible with larger pipe connections.
- - Connection Types: Butt Weld on both sides, providing a secure, permanent connection.
- - Pipe Schedule: 10, indicating suitability for pipes with schedule 10 wall thickness.
- - Includes pre-applied thread sealant: No.
- - Includes sealing components: No.
- - Standards: ASTM A403, ASTM A960, ASTM B16.9, MSS SP-43, ensuring compliance with industry specifications.
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 3.50
- Package Width: 3.50
- Package Height: 3.50
- Package Weight: 1.00
