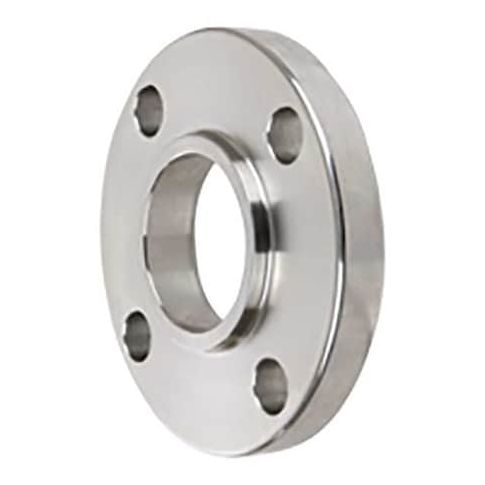

Pipe Flange, Slip-On, 316/316L Stainless Steel, 1/2 in Nominal Pipe Size, Class 150, Raised Face MPN:4381002200

• The ZORO SELECT - 4381002200 is a stainless steel pipe flange designed to provide a boltable surface for joining pipes, valves, pumps, or equipment. This pipe flange features a slip-on design, fitting over the pipe and secured by welding. It is constructed from 316/316L stainless steel, offering corrosion resistance and compatibility with standardized piping systems. The flange has a raised face connection surface, creating a pressure-tight joint when used with gaskets and bolts. This flange is rated Class 150, compliant with industry standards.

  Key Features:


  • - Nominal Pipe Size: 1/2 in
  • - Flange Outside Diameter: 3 1/2 in
  • - Flange Thickness: 7/16 in
  • - Bolt Circle Diameter: 2 3/8 in
  • - Number of Bolt Holes: 4
  • - Bolt Hole Diameter: 5/8 in
  • - Material Grade: 316/316L Stainless Steel
  • - Specific Fitting Shape: Slip-On Flange
  • - Connection Surface: Raised Face
  • - Pressure Class: 150
  • - Standards: ASME A182
  • ASME B1.20.1
  • ASME B16.5
