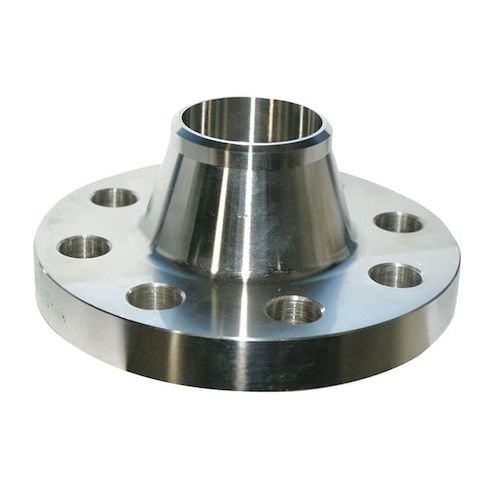

1/2" Welded SS Weld Neck Flange Sch 40 MPN:4381004600
The ZORO SELECT 4381004600 is a high-performance 1/2in Welded SS Weld Neck Flange Sch 40 designed for use in demanding applications. Made from 304/304L alloy, it offers exceptional resistance to corrosion and can withstand pressures up to 720 psi. Its weld neck design allows for seamless connections to pipes, ensuring smooth flow and minimizing pressure drops. Suitable for use in piping systems, chemical processing, and steam applications, this flange is a reliable choice for industries requiring high-quality, durable connections. Its compact design and standard flange face make it easy to install and maintain.
Top product features:
- The flange features a long, tapered hub for butt-welding to pipes, providing a smooth flow path.
- The product is made from forged 304/304L stainless steel, rated for use within specified pressure, temperature, and corrosive conditions.
- The connection surface is a raised face for sealing against gaskets or mating surfaces.
Top product applications:
- Chemical Processing
- High-Temperature Piping Systems
- Steam Distribution Systems
The ZORO SELECT - 4381004600 is a stainless steel weld neck flange made from 304/304L alloy, rated for use within specified pressure, temperature, and corrosive conditions. Its long, tapered hub features consistent with weld neck flange specifications, allowing for butt-welding to pipes and providing a smooth flow path. The flange installs through welding and features a bolt circle diameter of 2 3/8 inches and four bolt holes of 5/8 inches in diameter. It has an outside diameter of 3 3/4 inches, a flange thickness of 5/8 inches, and an overall length of 2 1/16 inches. The connection surface conforms to standard flange face specifications, and the product is manufactured in accordance with ASTM-SA182 and ANSI B16.5 standards. Its rated pressure capacity is up to 720 psi, and steam pressure specifications comply with relevant standards.
Key Features:
- - Material: Forged 304/304L Stainless Steel, rated for use within specified pressure, temperature, and corrosive conditions
- - Connection type: Welded, compatible with piping systems for which it is rated
- - Pressure ratings: Rated for operation up to 720 psi
- steam pressure specifications comply with relevant standards
- - Dimensions: Manufactured to specified dimensions, including bolt circle diameter 2 3/8 in, outside diameter 3 3/4 in, flange thickness 5/8 in, overall length 2 1/16 in
- - Number of bolt holes: 4, with each bolt hole diameter of 5/8 in, in accordance with standards
- - Connection surface: Raised face for sealing against gaskets or mating surfaces
- - Standards: ASTM-SA182, ANSI B16.5
- - Nominal pipe size: rated for use with pipes of nominal size 1/2 inch
- - Fitting schedule/class: Class 300
Additional Information
- Country of Origin: KR
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 5.40
- Package Width: 5.50
- Package Height: 5.80
- Package Weight: 2.25
