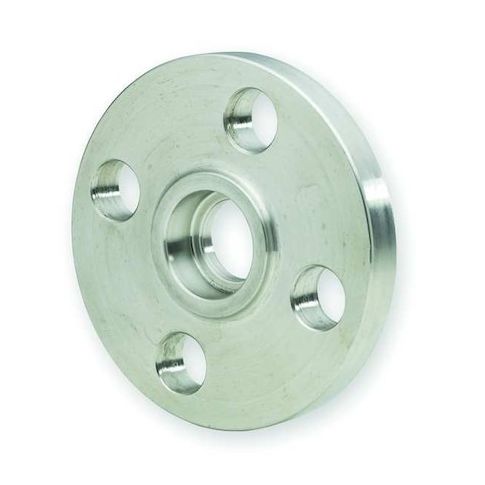

3" Socket Weld SS Flange MPN:4381000670
The ZORO SELECT 4381000670 is a high-performance, 3in Socket Weld SS Flange designed for demanding small-diameter piping systems. Constructed from forged 304 stainless steel, it provides exceptional corrosion resistance and strength. Ideal for applications requiring high pressure and temperature ratings, this flange is rated for pressures up to 275 psi and steam ratings up to 150 psi. Its compact design and standardized dimensions make it compatible with a range of systems, including those adhering to ASTM-SA182 and ANSI B16.5 standards. Perfect for industries such as oil and gas, chemical processing, and power generation, this flange ensures reliable, pressure-tight connections in critical systems.
Top product features:
- Forged 304 Stainless Steel provides durable corrosion resistance.
- The recessed socket accepts pipe ends for pressure-tight sealing.
- The flange is rated for operation at pressures up to 275 psi.
Top product applications:
- High-pressure piping systems for chemical plants
- High-temperature piping systems for power plants
- Industrial piping systems for oil refineries
The ZORO SELECT - 4381000670 is a stainless steel socket weld flange designed for small-diameter, high-pressure piping systems. It features a recessed socket to accept pipe ends, which are then secured with a fillet weld to create a pressure-tight connection. The flange is constructed from forged 304 stainless steel, providing corrosion resistance and strength. It has a bolt circle diameter of 6 inches, bolt hole diameter of 3/4 inches, flange outside diameter of 7-1/2 inches, and a thickness of 15/16 inches. This flange is rated for operation at pressures up to 275 psi, with a steam rating of 150 psi, and is intended for use within rated pressure specifications.
Key Features:
- - Material: Forged 304 Stainless Steel for durable corrosion resistance.
- - Connection Type: Socket Weld flange accepting pipe ends for pressure-tight sealing.
- - Pressure Rating: Class 150, supporting maximum operating pressure of 275 psi.
- - Dimensions: 3-inch nominal pipe size, 7-1/2 inch outside diameter, 15/16 inch flange thickness.
- - Bolt Details: 4 bolt holes with a 6-inch bolt circle diameter and 3/4 inch bolt hole diameter.
- - Compatibility: Standardized to ASTM-SA182 and ANSI B16.5 standards.
Additional Information
- Country of Origin: VN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.50
- Package Width: 7.50
- Package Height: 1.30
- Package Weight: 9.10
