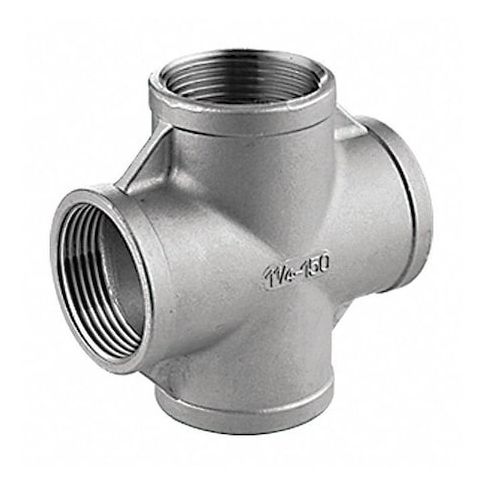

1" FNPT 304 SS Cross MPN:400X111N010

The ZORO SELECT - 400X111N010 is a stainless steel pipe fitting in a cross shape, featuring four equally-sized openings arranged at 90° in a single plane. Manufactured from 304 stainless steel, this Class 150 fitting is designed to join or split flow among four 1-inch pipe runs, with all connections featuring female NPT threads. It is rated for use in systems involving air, natural gas, non-potable water, oil, potable water, and steam, with a maximum operating pressure of 300 psi and a maximum steam pressure of 150 psi. The fitting's metal construction indicates corrosion resistance suitable for use in plumbing, HVAC, and industrial process piping environments requiring a four-line intersection.

Key Features:

• - Four-way cross fitting with 1 inch nominal pipe size on all four connections.
• - Female NPT threaded connections on all sides (A, B, C, D) with 11 threads per inch.
• - Made from 304 stainless steel compliant with ASTM-A-351 material standards.
• - Pressure rating of Class 150 with a maximum pressure of 300 psi and max steam pressure of 150 psi.
• - Meets MSS-SP-114 Class 150 pressure ratings and thread standards per ANSI/ASME B1.20.1.
• - Designed for pipe schedule 40 compatibility.
• - Overall length measures 73 mm, facilitating integration into standard piping systems.
• - Does not include pre-applied thread sealant or any additional sealing components.
• - Low lead compliant for applications involving potable water.
