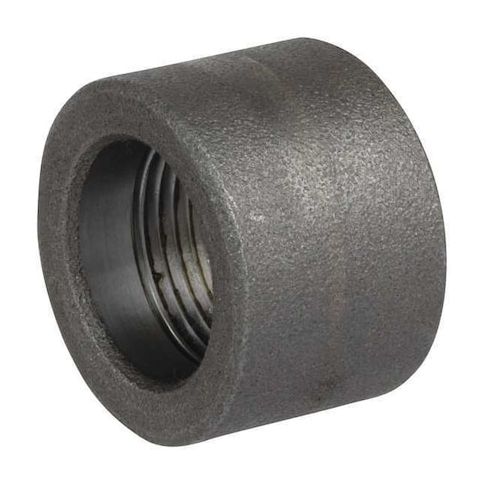

1/4 in FNPT 304 Stainless Steel Half Coupling, Class 3000, 3/4 in OD MPN:4307000402
This 1/4 in FNPT 304 Stainless Steel Half Coupling is designed for joining or reducing branch connections where space is limited. Made from corrosion-resistant 304 stainless steel, it features female NPT threaded connections on both ends. With a pressure rating of 2,570 psi @ 100°F and steam pressure rating of 1,965 psi @ 350°F, it's suitable for various applications, including plumbing, HVAC, and chemical processing. Its compact size and durable construction make it an ideal choice for use in tight spaces, reducing the need for full-length couplings and minimizing material waste. It's perfect for new installations or repairs.
Top product features:
- Material: 304 stainless steel providing corrosion resistance.
- Type: Half coupling with one shortened end for single-pipe engagement.
- Connections: Female NPT threaded on both ends sized at 1/4 inch nominal pipe size.
Top product applications:
- Steam System Applications
- This half coupling is suitable for use in steam systems where a full-length coupling is not required or space is limited, providing a reliable connection at 1,965 psi @ 350°F.
- Industrial Process Applications
The ZORO SELECT - 4307000402 is a stainless steel half coupling designed for joining or reducing branch connections where a full-length coupling is not required or space is limited. Made from 304 stainless steel, it features female NPT threaded connections on both ends sized at 1/4 inch nominal pipe size. Pressure rating: 2,570 psi @ 100°F
- Steam pressure rating: 1,965 psi @ 350°F. Conforms to ASME B1.20.1 NPT
- ASTM A182
- ASME B16.11 standards for threads, materials, and dimensions. Key Features:
- - Material: 304 stainless steel providing corrosion resistance.
- - Type: Half coupling with one shortened end for single-pipe engagement.
- - Connections: Female NPT threaded on Side A and Side B.
- - Nominal Pipe Size: 1/4 inch.
- - Pressure Rating: Class 3000 with a maximum pressure of 2,570 psi @ 100°F.
- - Maximum Steam Pressure: 1,965 psi @ 350°F.
- - Outside Diameter: 3/4 inch
- Overall Length: 11/16 inch.
- - Standards: Threads per ASME B1.20.1 NPT
- Material per ASTM A182
- Dimensions per ASME B16.11.
- - Does not include pre-applied thread sealant or sealing components.
Additional Information
- Country of Origin: TW
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 0.70
- Package Width: 0.70
- Package Height: 0.70
- Package Weight: 0.05
