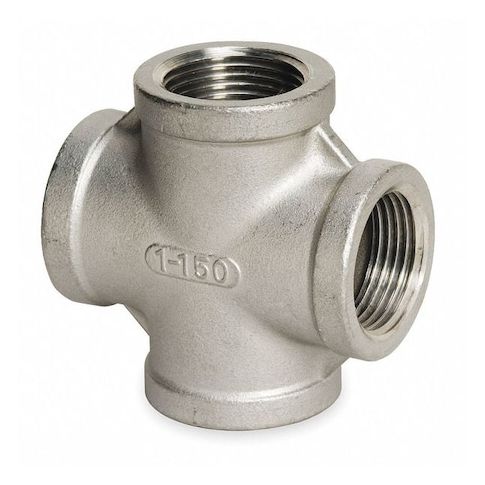

1 in FNPT Stainless Steel Pipe Cross, Class 150, 316 Grade, Female Threaded MPN:4381037850

• The ZORO SELECT - 4381037850 is a stainless steel cross pipe fitting constructed from 316 stainless steel. It features four female FNPT (National Pipe Thread) connections arranged at 90° in one plane, each with a nominal pipe size of 1 inch. Designed to join or split flow among four pipe runs, this Class 150 fitting is rated for operation within 300 psi at 150°F. The fitting conforms to ASTM-A-351 material standards, ANSI/ASME B1.20.1 thread standards, and complies with MSS-SP-114 Class 150 pressure standards. Its silver finish corresponds to the inherent color of stainless steel.

  Key Features:

  • - Material: 316 Stainless Steel
  • - Fitting Type: Cross with four 1" female FNPT threaded connections
  • - Pressure Class: Class 150, rated for operation within 300 psi at 150°F
  • - Compliance: ASTM-A-351 for material
  • ANSI/ASME B1.20.1 for threads
  • MSS-SP-114 Class 150 pressure standards
  • - Dimensions: Outside diameter approximately 1-51/64" with an overall length of 2 7/8"
  • - Configuration: Four-way fitting with connections arranged at 90° in one plane
  • - omit from description
