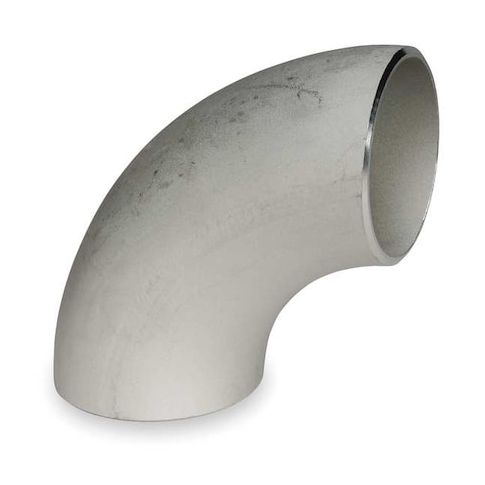

1-1/4 in 304L Stainless Steel Schedule 40 Butt Weld 90° Long Radius Elbow MPN:4381017830
Upgrade your piping system with the ZORO SELECT 4381017830, a 90 Degree Long Radius Elbow made from 304L stainless steel. Ideal for applications where corrosion resistance is crucial, this elbow provides a 90° change in flow direction with a centerline radius 1.5 times the pipe nominal diameter. Perfect for use in chemical processing, food and beverage, and pharmaceutical industries, this fitting ensures smooth fluid flow and easy connection to Schedule 40 pipes. Its durable construction and corrosion-resistant properties make it a reliable choice for demanding environments, reducing maintenance and extending the lifespan of your piping system.
Top product features:
- 304L Stainless Steel provides corrosion resistance.
- The 90 Degree Long Radius Elbow changes flow direction by 90° with a centerline radius 1.5 times the pipe nominal diameter.
- Butt Weld connections connect pipes of 1-1/4 inch nominal size on both ends.
Top product applications:
- Chemical Processing Plants
- Water Treatment Facilities
- Food Processing Plants
The ZORO SELECT - 4381017830 is a 90 Degree Long Radius Elbow stainless steel pipe fitting that provides a 90° change in flow direction with a centerline radius 1.5 times the pipe nominal diameter. Made from 304L stainless steel, it has corrosion resistance inherent to 304L stainless steel and connects pipes of 1-1/4 inch nominal size on both ends using butt weld connections. Standards: ASTM A-403/A and ASTM A-403M-88a specify dimensions and materials, and it is compatible with Schedule 40 pipe wall thickness.
Key Features:
- - Material: 304L Stainless Steel
- - Shape: 90 Degree Long Radius Elbow (1.5D radius)
- - Connection Type: Butt Weld ends on both sides
- - Nominal Pipe Size: 1-1/4 inch on Side A and Side B
- - Pipe Schedule Compatibility: Schedule 40
- - Color: Silver
- - Overall Length: 3-3/4 inches
- - Standards: ASTM A-403/A and ASTM A-403M-88a specify dimensions and materials
- - Does not include pre-applied thread sealant or sealing components
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 7.00
- Package Width: 5.50
- Package Height: 1.80
- Package Weight: 2.98
